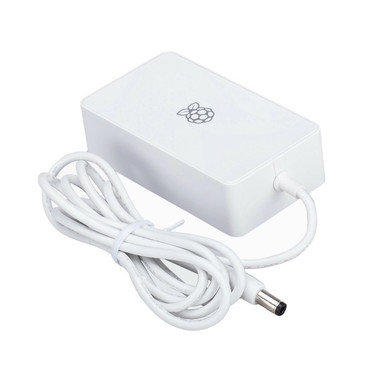

Raspberry Pi 48W Power Supply for Build HAT SC0747 - White - US Power your Raspberry Pi Build HAT projects with the Raspberry Pi Build HAT Power Supply. This 48W power supply will power the Build HAT and connected LEGO® TechnicTM motors, as well as your Raspberry Pi computer.Compatible with LEGO Technic motors and sensors included in the LEGO® Education SPIKETM Portfolio, the Build HAT combines the power of Raspberry Pi computing with easy building opportunities to help you make creative and robust projects. No separate power supply is required for the Raspberry Pi when using the Build HAT PSU via the Build HAT. This power supply uses a 2.1mm centre-positive barrel jack connector. Want to use this for other projects? Grab one of these DC Power Adapters to break out the 8V/GND lines - handy for buck converters and other uses! Built HAT Power Supply Features Designed specifically for the Raspberry Pi Build HAT US/NA Power Supply Input: 110-240V AC Output: 8V DC, 6A Output connector: 5.5mm x 2.1mm x 11mm centre-positive barrel jack Cable: 1.5m 16AWG Colour: White Built HAT Power Supply Specification Input Voltage Range 100-240Vac (rated) 96-264Vac (operating) Frequency: 50/60Hz ±3Hz Current: 50/60Hz ±3Hz Power consumption (no load): 0.1W maximum Inrush current: No damage shall occur and the input fuse shall not blow Output Output Voltage: 8.0V DC Minimum Load Current: 0.01A Nominal Load Current: 6A Maximum Power: 48W Load regulation: ±5% Line regulation: ±5% Ripple & Noise: 200mVp-p Rise time: 100ms maximum to regulation limits for DC outputs Turn-on delay: 3000ms maximum at nominal input AC voltage and full load Protection: Short circuit Overcurrent Overvoltage Efficiency: 87.77% minimum (output current from 100%, 75%, 50%, 25%) Output cable: 1.5m 16AWG Output connector: Barrel connector, 5.5mm × 2.1mm × 11mm, centre positive Built HAT Power Supply Physical Specification
