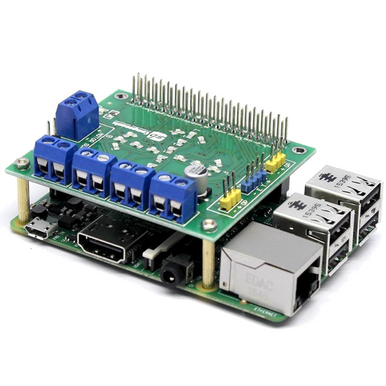

Raspberry Pi Board not Included Designed to help with a Raspberry Pi based Robot project. This board can control a DC motor or stepper motor. You can connect your IR and Ultrasonic sensors to tell your robot about its environment. You can easily make a Line Following, Object following, Wall following, Maze-Solving Robot. Control up to 4 DC Motors or 2 Stepper Motors Onboard LED arrow Indicators for direction Onboard 2 - IR sensor connector Onboard 1 - Ultrasensor connectors Python Library for interfacing Python-based GUI for controlling Motor Shield Specifications Dual H-Bridge IC L293D: For controlling up to for 4 DC motors or 2 stepper motors. Motor Input Supply Range: 6V - 24V Single Motor Output Current: 600mA or 1A peak current per channel Onboard LED arrow indicator for motor direction control 2 IR sensor Connectors with 3.3V level output protection 1 Ultrasonic Sensor Connector with 3.3V level output protection Male Header and screw terminal for Motor Supply GPIO stacking header View Sample Codes, Instruction Manual, Schematic Files, GUI software and get the shield library code from GitHub here.
