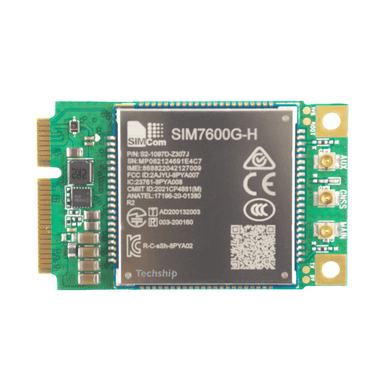

The SIMCom SIM7600G-H R2 LTE CAT-4 mPCIe is Multi-Band LTE-TDD/LTE-FDD module solution in a mPCIe form factor. SIM7600G-H R2 is a LTE CAT4 module with support of up to 150Mbps downlink data transfer. With abundant application capability like TCP/UDP/FTP/FTPS/HTTP/HTTPS/DNS, the module provides much flexibility and ease of integration for customer's application. SIM7600G-H R2 is a global variant with supports for more than 20 LTE bands as well as fallback to 3G and 2G. Specifications Form Factor: mPCIe - full size Fallback: 3G, 2G Max UL Speed: 50 Mbps Antenna Connectors: IPEX MHF/U.FL Chipset: Qualcomm, MDM9607-0 Primary Technology: LTE - cat 4 GNSS: Yes Data Interface: USB 2.0 Max DL Speed: 150 Mbps GNSS antenna support: Passive, Active Operating Temperature Range: -40 - 85 °C SIM interface: Through miniPCIe connector UMTS Bands B1 (2100) B2 (1900) B4 (AWS) B5 (850) B6 (800) B8 (900) B19 (800) Certification CE RED FCC IC PTCRB GCF RoHS REACH RCM IMDA Telec SRRC NCC KC Jate ICASA CCC ANATEL LTE Bands B1 (FDD 2100) B2 (FDD 1900) B3 (FDD 1800) B4 (FDD 1700 / AWS) B5 (FDD 850) B7 (FDD 2600) B8 (FDD 900) B12 (FDD 700ac) B13 (FDD 700c) B18 (FDD 800) B19 (FDD 800) B20 (FDD 800DD) B25 (FDD 1900) B26 (FDD 850) B28 (FDD 700) B34 (TDD 2000) B38 (TDD 2600) B39 (TDD 1900) B40 (TDD 2300) B41 (TDD 2500) B66 (FDD 1700 / AWS-3) GSM/EDGE Bands B2 (1900) B3 (1800) B5 (850) B8 (900) GNSS technology GPS GLONASS BeiDou Carrier Certification AT&T T-Mobile Verizon US Cellular Deutsche Telekom Orange Telstra Driver Support Windows 10 Linux Windows 8 Windows 7 Windows Vista Windows XP Resources Datasheet
