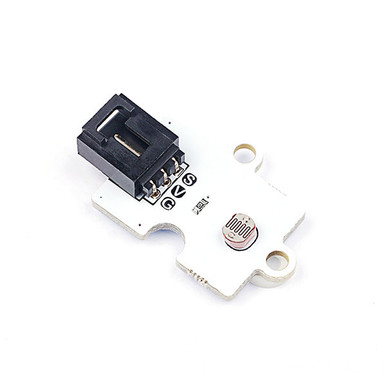

Octopus Analog Photocell Brick Adjustable Sensitivity

Adjustable sensitivity Analog Photocell Brick allow you to adjust sensitivity of analog Photocel to get digital signal or set a trigger value. Characteristics The 3-pins ports is easy to plug and play. Specifications Item | Parameter :-: | :-: SKU|EF10044 Power Dissipation|ULP Working Temperature|-20-70℃ Working Voltage|3.3-5V Outlook and Dimensions Materials used and connection diagram Connect to the P1 port Take sensor:bit for example Add Package Click “Advanced”in the choice of the MakeCode to find more choices. Click “Extensions”, search “oled”in the dialog box and then download the “oled-ssd1306”.  Program as the picture shows Reference Links: https://makecode.microbit.org/_405MVPbf1hu1 Result The value of the illumination sensitivity is showing on the micro:bit.
