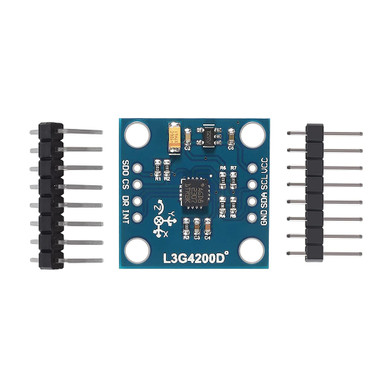

L3G4200D is a 3 axis gyroscope, providing you with very high resolution (16 bit) measurements at up to 2000 degrees per second (dps). The gyroscope measures how much the device is rotating around all three axis, the range is user selectable and so can be adjusted to suit your application. The gyro is marketed as ultra-stable, which basically means its measurements vary much less over time and temperature compared to other gyroscopes you may have used in the past. The triple axis gyro outputs data over either I2C or SPI. If you choose to use the device in I2C, there are handy soldering jumpers available on the board to choose the address. The device also features a 32 count first in first out (FIFO) buffer, allowing you to request the data in batches, rather than having to constantly query the device. This frees up processor cycles for more calculations, whilst still maintaining a high bandwidth. 3.6V ~6.5V Supply Voltage, typically 5V I2C and SPI interfaces 3 Axis Measurements Adjustable resolution (250, 500, 2000 dps) Very sensitive measurements (8.75mdps/LSB) Anti-reverse IIC interface head to prevent again wrong hardware connection.
