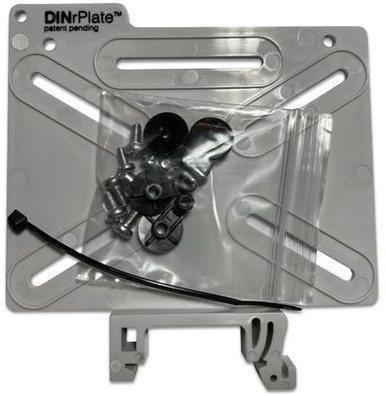

Universal PCB DIN Rail Mount Innovative Design: Sliding, rotating stand-offs accommodate a wide range of PCBs. Professionally mount your Banana Pi, Orange Pi, O-Droid, Raspberry Pi, Relay Boards, SSD, DC: DC Converters.... the list is nearly endless! Mount most boards horizontally or vertically to improve access to ports. All-in-one design for a robust and simple solution. Stock one part for many uses Patent Pending Design Specifications Compact footprint: 100mm x 100mm x 10mm (L x W X D) Integrated 35mm DIN Rail mounting clip. Includes mounting hardware; four (4) rotating stand-offs, four (4) M3 screws & four (4) M2.5 screws Only 30 grams (base alone) Wide PCB Hole pattern range: From19mm x 15mm <--> 99mm x 64mm Mount a standard 2.5" SSD/HDD (M3 mounting screws included.) Installation Instructions Attach Standoffs to PCB Using the smaller M2.5 screws, attach the standoffs to the PCB. Tighten screws just a little, so the standoff can still rotate with your fingers. This will make the next step easier. Align Standoffs in Slots Gently rotate the standoffs so they align with the respective sliding slot/channels. (If standoffs don't rotate, loosen the M2.5 screws a little.) Hold PCB in place against the base with one hand, and attach with M3 from the back. Keep screws a little loose. Secure PCB to Mount When all 8 screws are installed, align the PCB to the desired position, and then tighten all screws. Do Not Over Torque Screws, it's not necessary! Attach Mount to DIN Rail Hook the rigid side of the DIN clip to the rail, and press down until the clip secures to the other side. (If you need to remove, use a slotted screwdriver with a prying action on the flexible attachment point. Access is only from the side opposite of the PCB. )
