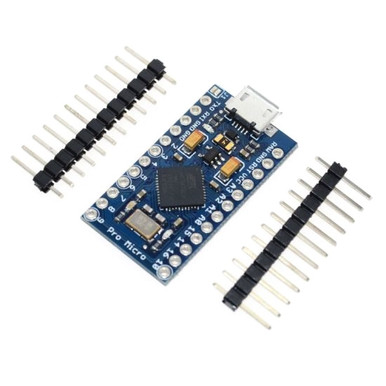

The Pro Micro is an Arduino-compatible microcontroller. It is similar to the Pro Mini except with an ATmega32U4 on board. The USB transceiver inside the 32U4 allows us to add USB connectivity on-board and do away with bulky external USB interface. This tiny little board does all of the neat-o Arduino tricks that you're familiar with: 4 channels of 10-bit ADC, 5 PWM pins, 12 DIOs as well as hardware serial connections Rx and Tx. Running at 16MHz and 5V, this board will remind you a lot of your other favorite Arduino-compatible boards but this little guy can go just about anywhere. There is a voltage regulator on board so it can accept voltage up to 12VDC. If you're supplying unregulated power to the board, be sure to connect to the "RAW" pin on not VCC. Dimensions: 1.3x0.7" Features ATMega 32U4 running at 5V/16MHz Supported under Arduino IDE v1.0.1 On-Board micro-USB connector for programming 4 x 10-bit ADC pins 12 x Digital I/Os (5 are PWM capable) Rx and Tx Hardware Serial Connections Smallest Arduino-Compatible Board Yet! This is an Arduino-comptabile product, meaning it is not made by Arduino. Arduino hardware and software are open source, so high quality Arduino-compatible hardware may be made by multiple vendors. Please ensure that all support issues for Arduino-compatible products are addressed to us at Pishop.us
