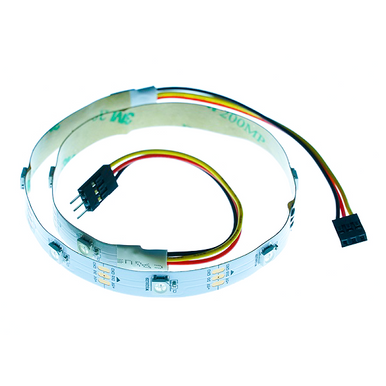

Elecfreaks Neopixel Rainbow LED Strip & GVS Conector (10 LEDs)

This is a colorful strip based on WS2812B beads, it can display the color RGB and support multiple cascades at the same time. Characteristics Standard 3-pin GVS ports are easy to plug. Both ends are equipped with a connector and it supports multiple cascades. It can drive the micro:bit in 3.3V. Specifications Item Parameter SKU EF04098 Working Voltage DC 3.0V Power Supply 3V~5V Connector Type Analog Number of beads 10 pcs Pins Definition 1-Signal 2-VCC 3-GND Response Quick to response and high sensitivity Circuit Simple drive circuit Stability Stable and durable Outlook & Dimensions Connection Diagram Connect to the P1 port of the extension board. Reference Links: https://makecode.microbit.org/_bfECLKegkYbR This is a colorful strip based on WS2812B beads, it can display the color RGB and support multiple cascades at the same time.CharacteristicsStandard 3-pin GVS ports are easy to plug.Both ends are equipped with a connector and it supports multiple cascades.It can drive the micro:bit in 3.3V.SpecificationsItemParameterSKUEF04098Working VoltageDC 3.0VPower Supply3V~5VConnector TypeAnalogNumber of beads10 pcsPins Definition1-Signal 2-VCC 3-GNDResponseQuick to response and high sensitivityCircuitSimple drive circuitStabilityStable and durableOutlook & Dimensions441-2-1.jpgConnection DiagramConnect to the P1 port of the extension board.neopixel-rainbow-2.jpgReferenceLinks: https://makecode.microbit.org/_bfECLKegkYbR
