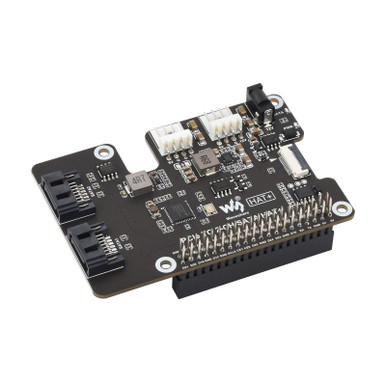

PCIe To 2-Ch SATA HAT for Raspberry Pi 5, SATA Compatible, Onboard EEPROM & LED Indicators, Plug And Play

Waveshare 31882 - PCIe To 2-Ch SATA Adapter For Raspberry Pi 5, Supports SATA Hard Drive, Onboard Dual LED Indicators And EEPROM, HAT Standard, Plug And Play - PCIe TO 2-CH SATA HAT The PCIe TO 2-CH SATA HAT adds two SATA 3.0 (6 Gbps) drives to your Raspberry Pi 5 using its 16-pin PCIe interface. It’s driver-free and delivers the convenience of dual LED indicators plus onboard EEPROM storage of HAT-ID info. Ideal for DIY NAS builds or media server projects. Features Plug‑and‑play HAT for Raspberry Pi 5 with 16‑pin PCIe FFC interface — no drivers needed on recent Pi OS  Two SATA 3.0 ports (6 Gbps each), via PCIe Gen3×1 interface, supporting standard SATA hard drives (2.5″ and 3.5″)   Supports power‑saving modes (L0s / L1), AHCI Spec 1.2, and Native Command Queuing (NCQ) for efficient storage access   Dual LED indicators to show drive activity and status   Onboard EEPROM that stores HAT ID and product information   Flexible power options: supports both 12 V and 5 V SATA power inputs via a 4‑pin JST XH connector or barrel jack Installation on Pi 5 via 16PIN Cable. Outline dimensions Wiki: www.waveshare.com/wiki/PCIe_TO_2-CH_SATA_HAT Package content PCIe TO 2-CH SATA HAT × 1 SATA Adapter Cable × 2 16PIN PCIe cable × 1 Screws pack × 1
