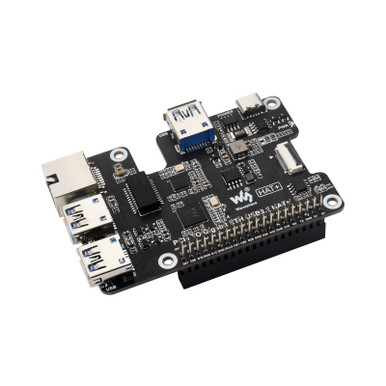

Waveshare 27541 - PCIe To Gigabit Ethernet And USB 3.2 Gen1 HAT For Raspberry Pi 5, 3x USB 3.2 Gen1, 1x Gigabit Ethernet, Driver-Free, Plug And Play - PCIe TO Gigabit ETH USB3.2 HAT Designed exclusively for the Raspberry Pi 5, the Waveshare PCIe to Gigabit Ethernet USB 3.2 HAT Plus unlocks powerful expansion via the new PCIe FFC interface. Add a full-speed Gigabit Ethernet port and dual USB 3.2 Gen1 interfaces. Perfect for connecting high-speed storage, cameras, or peripherals that demand reliable bandwidth. Features Designed for Raspberry Pi 5 - Compatible with the new PCIe interface via FFC cable 3x USB 3.2 Gen1 Ports - Add high-speed USB connectivity for external drives, cameras, and peripherals 1x Gigabit Ethernet Port - Powered by RTL8153B chip for fast and stable network performance Driver-Free, Plug & Play - Works out of the box with Raspberry Pi OS, Ubuntu, OpenWRT, and more Software-Controlled USB Power - Enable/disable USB ports and monitor power status in real time What's On Board VL805PCIe to USB 3.2 Gen1 HUB chip RTL8153BUSB to Gigabit ETH chip INA219Power monitoring chip EEPROMfor saving HAT ID and product information 16PIN PCIe interfacefor connecting to the PCIe interface of Raspberry Pi 5 Raspberry Pi GPIO headerfor connecting Raspberry Pi 5 Gigabit Ethernet portup to 1000Mbps data rate, compatible with 100Mbps USB 3.2 Gen1 expanded portsUSB1~USB3 Power portfor external Type-C 5V DC power supply PWR LEDPower indicator How to install *** For reference only, the Raspberry Pi 5 and cooling fan are NOT included, please refer to the Package Content for detailed part list. Outline dimensions Wiki: www.waveshare.com/wiki/PCIe_TO_Gigabit_ETH_USB3.2_HAT Package Content PCIe TO Gigabit ETH USB3.2 HAT x1 Network cable ~1.5m x1 16P-Cable-40mm x1 Standoff pack x1
