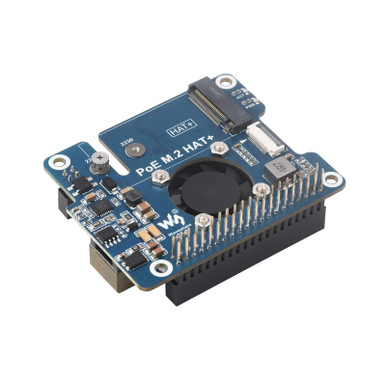

PCIe To M.2 Adapter With PoE For Raspberry Pi 5, Compatible w/ NVMe M.2 SSD

Waveshare 28411 - PCIe To M.2 Adapter With PoE Function For Raspberry Pi 5, NVMe M.2 Solid State Drive, 802.3af/At - POE M.2 HAT This PCIe To M.2 Adapter with PoE for Raspberry Pi 5 slots directly onto your Pi 5 using the HAT standard. It combines high-speed NVMe storage with power-over-Ethernet in one board. Ideal for high-speed, rack-ready Pi projects, and lets you stack other HATs without losing functionality. Feature PCIe To M.2 With PoE HAT Designed For Raspberry Pi 5, Supports IEEE 802.3af/at Network Standard Adapter For NVMe Protocol M.2 Solid State Drive, High-Speed Reading/Writing Complies with HAT standard Supports automatic detection of Raspberry Pi software/firmware What is HAT ? Based on the original HAT standard, the HAT is a new standard introduced by Raspberry Pi. Compatible with the Raspberry Pi 40PIN GPIO, plug-and-play. Integrates an EEPROM chip for automatic board configuration loading, simplifying the development process. Features standardized dimensions for a perfect fit with Raspberry Pi. Supports power supply through the Raspberry Pi 40PIN GPIO. Features Improves Reading/Writing Speed Of Your Pi NVMe Drive Slot Support Connecting To PI5 Via 16PIN Cable Based On 16PIN PCIe Interface Of Raspberry Pi 5. Standard Raspberry Pi 40PIN GPIO Stackable Header, Allows Connecting Other HATs Onboard Dual LED Indicators Easy To Monitor The Working Status NVMe Drive Protocol Support Compatible With 2230/2242 Size M.2 Solid State Drive Supports Gen2 And Gen3 Modes, Supports Booting PI5 From Solid State Drive Power Over Ethernet Providing Both Network Connection And Power Supply For Your Raspberry Pi In One Cable Onboard 5V & 12V Header Outputs 5V Header Provides Up To 4.5A Output (MAX 25W For 12V 5V Total Output Power) Be Able To Power Extra Devices While Providing Stable Power To Raspberry Pi Active Cooling Fan Accelerate Cooling Effect, More Stable Performance Specifications PoE power input 37V ~ 57V DC in Power output GPIO header: 5V 4.5A (MAX) 2P header: 12V 2A (MAX) Dimensions 56.5 × 70.0mm Network standard   IEEE 802.3af/at PoE Includes PoE M.2 HAT x1 Metal heatsink x1 16P-Cable-40mm x1 Thermal tape (3PCS) x1 Screws pack x1 How To Install Attach The Thermal Tapes First, Then Install The Metal Heatsink And Fix The HAT Outline Dimensions Resources Wiki: www.waveshare.com/wiki/PoE_M.2_HAT
