PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5
$40.46
$70.8

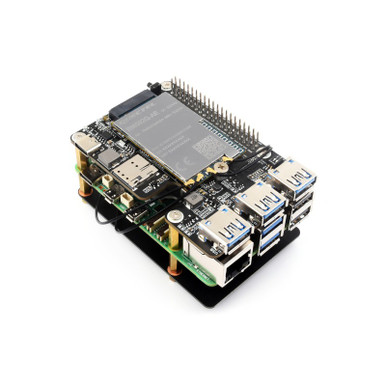

Waveshare 27698 - PCIe To M.2 4G/5G And USB 3.2 HAT For Raspberry Pi 5, Compatible With SIMCom/Quectel 4G/5G Modules, Comes With 5G-4IN1-PCB Antenna, Raspberry Pi 5 HAT, High-Speed Networking - PCIe TO 4G/5G M.2 USB3.2 HAT Features Designed for Raspberry Pi 5, HAT standard design with onboard I2C EEPROM, and supports Raspberry Pi 40PIN GPIO stackable expansion Extends 3x high-speed USB 3.2 Gen1 ports for connecting more peripherals Onboard M.2(NGFF) Key B slot, supports SIM7600XX-M.2, SIM82XX and RM5XX series 4G/5G modules and is compatible with 3042/3052 packages Onboard Type-C port for connecting to a PC for 4G/5G networking, debugging and firmware updating, or external power supply input Onboard power monitoring chip for real-time measurement of voltage, current and power Onboard SIM card slot for NANO-SIM card Onboard Reset button, Power and Network indicators for easy debugging and monitoring the operating status Comes with customized 5G-4IN1-PCB Antenna for neat wiring management, supports top or bottom installation Reserved airflow vent and mounting holes for cooling fan to increase airflow and provide better heat dissipation Includes PCIe TO 4G/5G M.2 USB3.2 HAT x1 5G-4IN1-PCB Antenna x1 16P-Cable-40mm cable x1 IPEX1 to IPEX4 cable ~13cm 4PCS x1 Screws pack x1 Note: The 4G/5G module is NOT included, please purchase separately according to your needs. Comes with 5G-4IN1-PCB antenna by default. How to install What's On Board VL805PCIe to USB 3.2 Gen1 HUB chip EEPROMfor saving HAT ID and product information INA219Power monitoring chip 16PIN PCIe interfacefor connecting to the PCIe interface of Raspberry Pi 5 M.2(NGFF) Key B slotCompatible with 3042/3052 packages M.2 4G/5G modules Raspberry Pi GPIO headerfor connecting Raspberry Pi 5 USB 3.2 Gen1 expanded portsUSB1~USB3 Nano SIM card slotfor installing Nano-SIM card Type-C interfacefor 4G/5G networking of Raspberry Pi or PC via USB cable, firmware updating, or external power supply input DIP switchfor switching to use GPIO pins to control power on/off and reset of the module Reset buttonPress it to reset the module PWR indicatorPower indicator NET indicatorModule Network status indicator Pinout Definition Outline Dimensions Resources Wiki: www.waveshare.com/wiki/PCIe_TO_4G/5G_M.2_USB3.2_HAT
