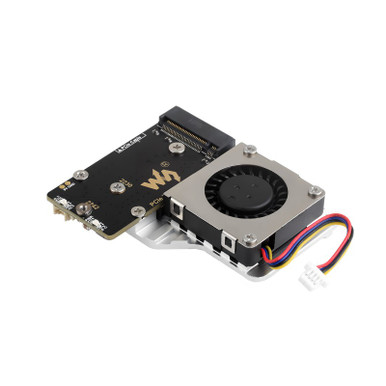

PCIe To M.2 Adapter Board (E) For Raspberry Pi 5, PWM Cooling Fan, NVMe Protocol M.2 SSD

Waveshare 28013 - PCIe To M.2 Adapter Board (E) For Raspberry Pi 5, With Cooling Fan, Compatible With 2242 / 2230 Size NVMe Protocol M.2 SSD, 8Gbps Data Rate, High-Speed Reading/Writing, Raspberry Pi 5 NVMe Improves Reading/Writing Speed Of Your Pi NVMe Drive Slot Support (Only supports the NVMe Protocol Solid State Drives) Based On Raspberry Pi 5 Connecting To PI5 Via 16PIN Cable NVMe Solid State Drives Support Onboard Dual LED Indicators - Easy To Monitor The Working Status Specifications FAN Input voltage 5V DC (supplied via four-pin fan header on Raspberry Pi 5) M.2 interface Supports NVMe Solid State Drives (PCIe Gen2/3) Solid State Drive size support 2242, 2230 Fan speed control Pulse width modulation control with tachometer Maximum airflow 1.39 CFM Fan speed 8000±10%RPM Material Anodised aluminium Includes PCIe TO M.2 Board (E) x1 MX1.25 2PIN cable x1 Thermal pad (3PCS) x1 Screws pack x1 Weight: 0.037 kg How To Install (for reference only, please refer to the Package Content for detailed part list) Outline Dimensions Resources Wiki: www.waveshare.com/wiki/PCIe_TO_M.2_Board_(E)
