USB to TTL Serial Cable for Raspberry Pi 5 Debugging, FT232RNL Chip

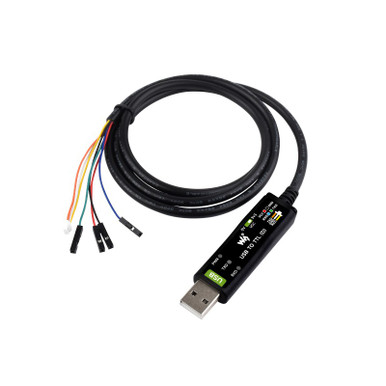

Waveshare 26738 - Industrial USB TO TTL (D) Serial Cable, FT232RNL, Multi Protection Circuits, Separated 4pin Header SH1.0 3PIN Connector, for Raspberry Pi 5 - USB TO TTL (D) The Industrial USB TO TTL serial cable features the original FT232RNL chip, onboard power supply and signal indicators, supports 3.3V/5V voltage level switching, built-in self-recovery fuse, ESD and IO protection diode circuits, etc. It is compact in size, suitable for serial port debugging of industrial equipment, and can be directly connected to the Raspberry Pi 5. Specifications Product category   Industrial USB TO TTL serial cable Chip scheme FTDI original FT232RNL Host port USB Data rate 300bps ~ 3Mbps Device Port UART USB port Connector: USB-A Protection: self-recovery fuse, ESD protection UART port Connector: separated 4pin female header SH1.0 3PIN fool-proof connector Protection: IO protection diode Indicator PWR: power indicator, turns on when there is USB connection and voltage is detected TXD: TX indicator, turns on while the USB port is sending data RXD: RX indicator, turns on while the device port is sending data back Cable Black, PVC sheath, total length 1m Pinouts Definition VCC 3.3V or 5V output, configured by switch GND   Ground TXD Connecting to MCU.RXD (signal direction: MCU.RX < < FT232 < < PC.TX) RXD Connecting to MCU.TXD (signal direction: MCU.TX > > FT232 > > PC.RX) Outline Dimensions * The above dimensions are measured manually and may have some errors Resources Wiki: www.waveshare.com/wiki/USB_TO_TTL_(D)
