USB To UART Debugger Module for Raspberry Pi 5, Type-A Port, Onboard UART Connector

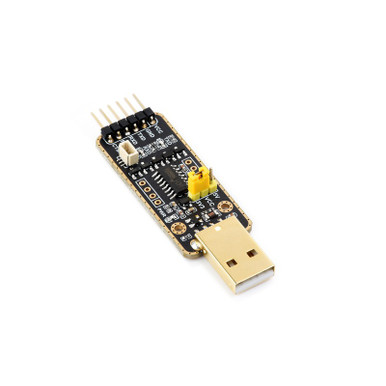

Waveshare 26619 - USB To UART Debugger Module For Raspberry Pi 5, Type-A Port, Onboard UART Connector, High Baud Rate Transmission, Multi Connection Methods, Multi System Support - Pi UART Debugger Features Supports Mac, Linux, Android, Windows 7/8/8.1/10/11 Onboard self-recovery fuse and Transient Voltage Suppressor, anti-overcurrent and anti-overvoltage, anti-surge, anti-static, improves shock-proof performance, stable and safe communication performance Onboard IO protection circuits, anti-surge, anti-static, stable, and safe communication performance Onboard 3.3V and 5V TTL level switch pins for selecting TTL communication level Supports 3.3V/5V output (the module is powered by USB, and the onboard jumper should be shorted to 3.3V or 5V accordingly) Adopts a double-sided black immersion gold process, which is durable and has a good look Specifications HOST INTERFACE USB DEVICE INTERFACE UART COMMUNICATION RANGE 50bps ~ 6Mbps USB DEVICE INTERFACE connector: USB Type-A;protection: self-recovery fuse, ESD protection UART INTERFACE connector: 6pin right-angle pinheader; 3pin connectorprotection: IO protection diode Interface Introduction INDICATOR DESCRIPTION PWR - Power indicator, turns on when voltage is detected from USB interface RXD - Receiving indicator, turns on when data is sent back from the device interface TXD - Sending indicator, turns on when data is sent from USB Pinouts Definition VCC - 5V or 3.3V output for external device (configured by jumper) GND - Ground TXD - Connects to MCU.RXD RXD - Connects to MCU.TXD RTS# - Connects to MCU.CTS CTS# - Connects to MCU.RTS Includes Pi UART Debugger x1 6-pin squid cable x1 SH1.0 connector to 3PIN cable ~100mm x1 Dual SH1.0 connector 3PIN cable ~100mm x1 Weight: 0.014 kg Outline Dimensions Resources Wiki: www.waveshare.com/wiki/Pi_UART_Debugger
