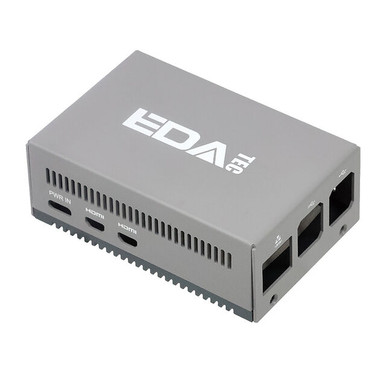

EDATEC - Metal Case supporting Raspberry Pi 5 HAT - ED-PI5CASE-EXT Features Sheet metal powder spraying aluminium profile technology, simple design Both top and bottom case provide passive cooling for Raspberry Pi 5 though thermal pads & metal body, excellent cooling performance Good protection for Raspberry Pi 5, Raspberry Pi Active Cooler and Raspberry Pi M.2 HAT Support installation of Raspberry Pi 5 Raspberry Pi M.2 HAT Support installation of Raspberry Pi Active Cooler HDMI, Ethernet port, USB, SD card, ON/OFF button and PWR/ACT indicator are all accessible Reserved camera cable slots and mounting holes for installing the Raspberry Pi Camera on the case All-metal casing with an attractive appearance for commercial and industrial scenarios Specification Cooling Performance Test Device Configuration Raspberry Pi 5 Raspberry Pi AI Kit Raspberry Pi Active Cooler Raspberry Pi 5 Raspberry Pi AI Kit Raspberry Pi Active Cooler ED-Pi5Case-EXT Software Configuration CPU 4 cores running at full load via sysbench Run stress_test in Hailo Module Ambient Temperature 25℃ Hailo*1 Module stableoperating temperature (℃) 93.1 73.3 Stable running temperature of CPU (℃) 65.1 65.1 *1: Hailo module is an operation module located on Raspberry Pi AI kit. Test Results: Under the environment of 25℃, when the device is running in a stable state, ED-Pi5Case-EXT can reduce the temperature of Raspberry Pi AI Kit by about 20℃, and also reduce the temperature fluctuation range of Raspberry Pi 5 CPU. Mechanical Characteristics Dimensions 91mm x 61mm x 33mm Material Sheet Metal (Top Cover) Aluminium Profile (Bottom Cover) Note: Raspberry Pi 5, Raspberry Pi Active Cooler, Raspberry Pi M.2 HAT , Raspberry Pi Camera Module 3 and SD card are not included in the box, the following is intended as an installation illustration only. Before you start installing, please remove the White Protective Paper from thermal silicone in the case. If the Raspberry Pi AI Kit is installed, please make sure that the thermally conductive silicone in the Top Cover is in full contact with the Hailo IC. You can log in to Raspberry Pi website (https://www.raspberrypi.com) to get assembly instructions of Raspberry Pi Active Cooler, Raspberry Pi M.2 HAT and Raspberry Pi Camera Module 3 Dimensions Resources Datasheet
