Serial Expansion HAT for Raspberry Pi, I2C Interface, 2-ch UART, 8 GPIOs

To hire

Warrior Pro Kantokassi L, Sininen/Oranssi

* Please note our minimum hire period is 4 weeks *

To hire this product, complete the form below or call

03700 949 808 8am – 10pm Monday to Friday

Step 1 of 2 – Enter your details
Category:

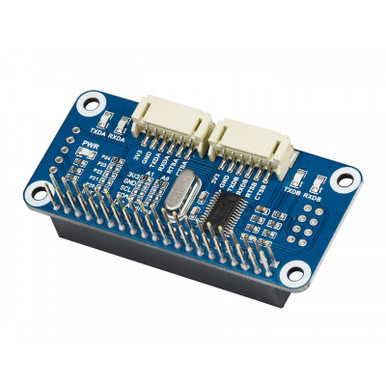

Waveshare 15667 - Serial Expansion HAT for Raspberry Pi, I2C Interface, Provides 2-ch UART and 8 GPIOs - Serial Expansion HAT. There is only 1-ch UART port on the original Raspberry Pi, once it is used for terminal debugging, no more other serial device is allowed. What a poor situation. Now you have 2-ch extra UART, plus 8 programmable GPIOs, just bring this Serial Expansion HAT. Features Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards Onboard SC16IS752, expands 2-ch UART and 8 programmable GPIO through I2C, no extra pin required It is stackable up to 16 this modules by setting the address jumper, that means up to 32-ch UART Onboard multi LEDs for indicating the UART working status Reserved I2C control pins, allows to work with other control boards Comes with development resources and manual (examples in C and python) Specifications Operating voltage: 3.3V Expansion chip: SC16IS752 Control interface: I2C Dimension: 65mm x 30mm Mounting hole size: 3.0mm Dimensions Development Resources Wiki : www.waveshare.com/wiki/Serial_Expansion_HAT Package Content Serial Expansion HAT x1 RPi screws pack (2pcs) x1 PH2.0 6PIN wire x2
