Ethernet / USB HUB HAT for Raspberry Pi, 1x RJ45, 3x USB

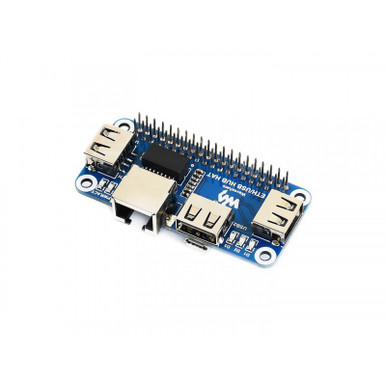

Waveshare 16595 - Ethernet / USB HUB HAT For Raspberry Pi, 1x RJ45 Ethernet Port, 3x USB Ports This Raspberry Pi hub HAT provides more USB capability to your Pi, plus a RJ45 Ethernet port, which is great when you need a stable wired Ethernet connection. It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero 2W / Zero W / Zero WH. Features 3x USB ports, compatible with USB2.0/1.1 1x RJ45 10/100M port, based on the RTL8152B Ethernet chip Onboard multi indicators, for monitoring the status of power, Ethernet, and each USB port Includes ETH/USB HUB HAT x1 Micro USB connector x1 Micro USB cable x1 RPi screws pack (2pcs) x1 Weight: 0.068 kg What's on Board Raspberry Pi GPIO interface: for connecting Raspberry Pi USB extended ports: USB1~USB3 RJ45 port: 10/100M Ethernet interface USB HUB interface (bottom): for connecting the HUB to the Raspberry Pi USB port Raspberry Pi Zero / Zero 2W / Zero W / Zero WH: connected via Micro USB connector Raspberry Pi B / 2B / 3B / 3B /4B: connected via Micro USB cable TS8121A: Ethernet wave filter RTL8152B: 10/100M Ethernet chip FE1.1S: USB HUB chip LED indicators: PWR: power indicator ACT: Ethernet indicator D1~D3: dedicated indicator for USB1~USB3 respectively Specifications Operating voltage: 5V Dimension: 65mm × 30mm Mounting hole size: 3.0mm Dimensions Resources Wiki : www.waveshare.com/wiki/ETH/USB_HUB_HAT
