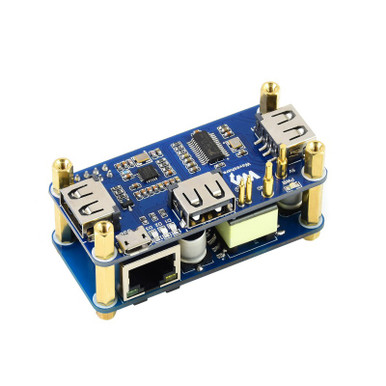

PoE Ethernet / USB HUB HAT for Raspberry Pi Zero, 1x RJ45, 3x USB
$25.16
$44.52
Waveshare 19635 - PoE Ethernet / USB HUB HAT For Raspberry Pi Zero, 3x USB 2.0 Ports, 802.3af-Compliant - PoE/ETH/USB HUB HAT Suitable For Raspberry Pi Zero / Zero 2W / Zero W / Zero WH, 802.3af-Compliant. Features The PoE/ETH/USB HUB HAT is a PoE (Power over Ethernet) USB HUB HAT designed for Raspberry Pi Zero. By using this small HAT and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable, along with 3x extended USB ports. Designed for Raspberry Pi Zero, compatible with Zero series boards Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port PoE (Power over Ethernet) feature, 802.3af-compliant Fully isolated SMPS (Switch Mode Power Supply) 3x extended USB ports, compatible with USB 2.0 / 1.1 Specifications PoE power input 37V ~ 57V DC in Power output 5V 2.5A DC out Network standard IEEE 802.3af-compliant PoE Dimensions 23.10 × 65.00 mm Content PoE/ETH/USB HUB HAT x1 USB HUB Board x1 Screws pack x1 Screwdriver x1 Weight: 0.063 kg Outline Dimensions Resources Wiki: PoE/ETH/USB_HUB_HAT
