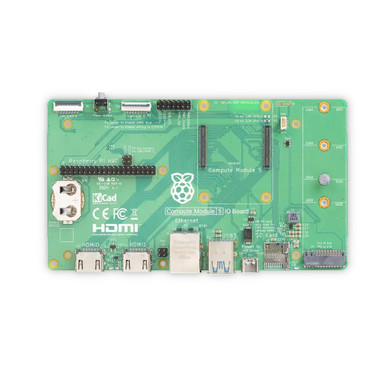

Raspberry Pi Compute Module 5 IO Board REV 2 - SC1967 (OLD SC1751)The Raspberry Pi Compute Module 5 IO Board provides a starting point for those wishing to integrate Raspberry Pi Compute Module 5 into products, while also serving as an alternative Raspberry Pi form factor for industrial applications.It breaks out the full set of peripheral interfaces provided by Compute Module 5 to the standard connectors used by Raspberry Pi 5 (with full-size HDMI in place of micro HDMI), enabling design engineers to take full advantage of the processing and interfacing capabilities of our flagship modular product.The IO Board accepts the complete range of Compute Module 5 parts and is available as a reference design in KiCad format. Specifications Form factor: 160 mm × 90 mm Connectivity: - Standard 40-pin GPIO header- Gigabit Ethernet RJ45 with optional PoE HAT support (requires separate Raspberry Pi PoE HAT )- 2 × USB 3 sockets- microSD card socket for Compute Module 5 Lite modules- M.2 M key PCIe socket- 4-pin fan connector- 2 × MIPI DSI/CSI-2 FPC connectors (22-pin 0.5 mm pitch cable)- Raspberry Pi HAT connector- RTC battery socket Video: 2 × full-size HDMI 2.0 connectors Input power: External 5V USB-C PSU, Power button to wake and shut down Compute Module 5 MTBF Ground Benign: 131 000 hours Product lifetime: The Raspberry Pi Compute Module 5 IO Board will remain in production until at least January 2028 Compliance: For a full list of local and regional product approvals, please visit pip.raspberrypi.com Resources Raspberry Pi Development Kit for Compute Module 5 product brief
