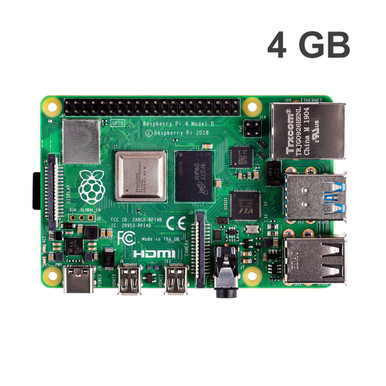

Raspberry Pi 4 Model B 4GB - SC0193 Raspberry Pi 4 Model B (4GB) is a solid option when projects need more memory and smoother multitasking. With a 64-bit quad-core processor at 1.5 GHz, dual-band WiFi, Bluetooth 5.0, Gigabit Ethernet, and PoE support via a separate HAT, it’s well-suited for advanced classroom setups, media projects, and commercial prototypes that benefit from the larger RAM capacity. Looking for the latest Raspberry Pi? ➡️ You can find the new RPi generation on our Raspberry Pi 5 boards and accessories page Specifications Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.8GHz 4GB LPDDR4-3200 SDRAM 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE Gigabit Ethernet 2 USB 3.0 ports; 2 USB 2.0 ports. Raspberry Pi standard 40 pin GPIO header (fully backwards compatible with previous boards) 2x micro-HDMI® ports (up to 4kp60 supported) 2-lane MIPI DSI display port 2-lane MIPI CSI camera port 4-pole stereo audio and composite video port H.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode) OpenGL ES 3.1, Vulkan 1.0 Micro-SD card slot for loading the operating system and data storage 5V DC via USB-C connector (minimum 3A*) 5V DC via GPIO header (minimum 3A*) Power over Ethernet (PoE) enabled (requires a separate PoE HAT) Operating temperature: 0 - 50 degrees C ambient * A good quality 2.5A power supply can be used if downstream USB peripherals consume less than 500mA in total. Documents Raspberry Pi 4 Model B product brief Raspberry Pi 4 Model B schematic diagrams Raspberry Pi 4 Model B mechanical drawing Documentation including hardware and configuration Notices All product change notices (PCNs) for Raspberry Pi 4 Model B can be found here. Obsolescence Statement Raspberry Pi 4 Model B will remain in production until at least January, 2034.
