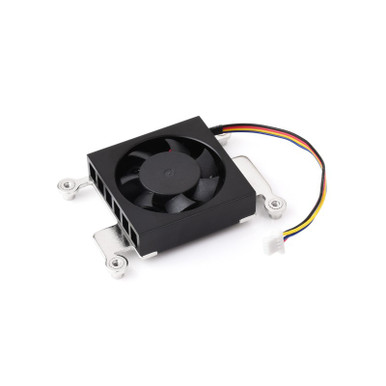

Dedicated 3007 Cooling Fan for Raspberry Pi CM5, Low Noise, 5V

Waveshare 29437 - Dedicated 3007 cooling fan for Raspberry Pi Compute Module 5, low noise, with thermal tapes, 5V power supply - CM5-FAN-3007-5V Upgrade your Raspberry Pi Compute Module 5 setup with the CM5-FAN-3007-5V, a purpose-built cooling solution designed to keep your CM5 running at peak performance. This low-profile 3007 fan delivers up to 5000 ±10% RPM airflow at just 1 W (5 V, 0.2 ± 0.02 A), ensuring efficient heat dissipation without adding distracting noise. Its four-wire PWM interface lets you fine-tune fan speed based on your system’s thermal needs, while the included high-adhesion thermal tapes simplify installation. The compact dimensions allows perfect alignment with your Compute Module 5 IO or PoE board, providing optimal cooling even in tight enclosures. Whether you’re building an industrial controller, edge AI device, or any CM5-powered project, the CM5-FAN-3007-5V keeps your board cool, quiet, and reliable. Specifications Rated power 1W (5V, 0.2±0.02A) Rated speed 5000±10%RPM General Low-profile, PWM speed adjustment Interface 4-wire PWM speed-adjustable fan header Cable length 90±10mm Dimensions 54×39×13mm Tailored for Raspberry Pi CM5 matching with the CM5 on size and mounting holes, fast heat dissipation. Space for antenna section No hindrance to the antenna. Compatible with Compute Module 5 IO Board Compute Module 5 PoE Board CM5 Cooling Comparison  Outline dimensions How to install 1. Attach thermal tapes onto the CM5 2. Fix the screws as the pictures show Package Content CM5-FAN-3007-5V x1 Screwspack and thermal tapes x1
