Nano Base Board (A) for Raspberry Pi Compute Module 5, Compact Size

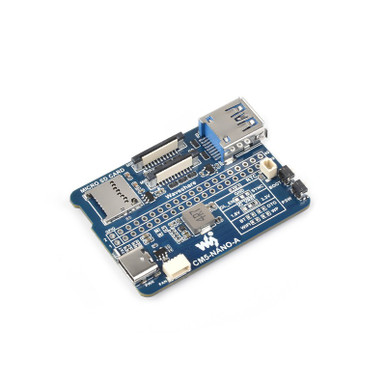

Waveshare 29307 - Nano Base Board (A) for Raspberry Pi Compute Module 5, Same Footprint as CM5 - CM5-NANO-A Designed for developers who need compact performance, the Mini Base Board A brings essential connectivity to the Raspberry Pi Compute Module 5. With HDMI, USB-C, MicroSD card support, and 5V power input. All packed into a tiny 55 × 40 mm footprint. It’s ideal for embedded systems, IoT devices, and space-constrained CM5 applications. Compact size and fully functional, With Multiple Peripheral Interfaces, Suitable for Narrow Application Environments. Specifications CM5 socket suitable for all variants of Compute Module 5 Connector Raspberry Pi 40PIN GPIO interface × 1 USB USB 3.2 Gen1 Type A port × 1 MIPI MIPI 4-lane interface × 2 (22pin 0.5mm FPC connector) Storage TF card socket for Compute Module 5 Lite (without eMMC) variants Power input 5V Dimensions 55 × 40mm What's On Board CM5 socketsuitable for all variants of Compute Module 5 USB portUSB 3.2 Gen1 high speed interface, for connecting sorts of USB devices TF card slotfor connecting a TF card with pre-burnt image (Lite variant ONLY) Power supply / Programming5V power supply, or used for eMMC burning FAN header4PIN JST-SH PWM fan header for connecting a cooling fan PSW buttonpower button BOOT buttonPress before powering on and release after powering on to enter the burning mode 2PIN JST-SH RTC battery header 40PIN GPIO interfacesuitable for connecting to various HAT modules Dual MIPI interfacesfor connecting to DSI displays or CSI cameras Special function pinsCM5 core power enable and ETH SYNC signal IO-VREF selectionCM5 IO logic level: 3.3V or 1.8V Function enable pinsEnabled by default, can be disabled by shorting the corresponding pads Dual-color LED indicatorRed light: Raspberry Pi power indicatorGreen light: Raspberry Pi working status indicator   Outline dimensions WIKI: www.waveshare.com/wiki/CM5-NANO-A Package Content CM5-NANO-A x1 2*20PIN color-coded straight pinheader x1
