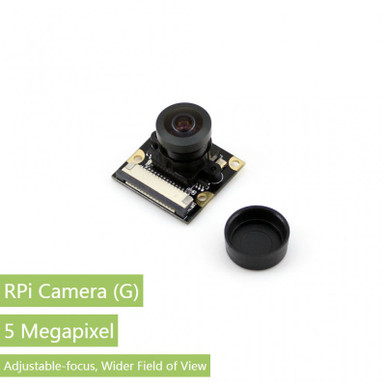

Waveshare 10344 - Raspberry Pi Camera Module, Fisheye Lens, Wider Field of View Features Raspberry Pi Camera, supports all revisions of the Pi Fisheye Lens, offers wider field of view 5 megapixel OV5647 sensor Adjustable focus distance Camera specifications CCD size : 1/4inch Aperture (F) : 2.35 Focal Length : 3.15mm Angle of View (diagonal) : 160 degree (while other normal cameras are typically 72 degree) Sensor best resolution : 1080p 4 screw holes Used for attachment Provides 3.3V power output Supports connecting fill flash LED Dimension: 25mm x 24mm Note: to use the camera with Raspberry Zero v1.3, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable Downloads Download: www.waveshare.com/wiki/RPi_Camera_(G) Content RPi Camera (G) x1 15-pin FFC (opposite sides contact) x1
