Raspberry Zero Mini Camera, Works with Raspberry Pi 5
$17.06
$22.51

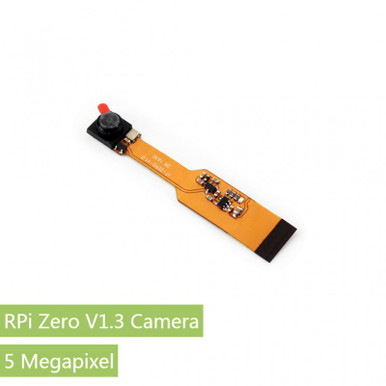

Waveshare 12039 - Raspberry Pi Zero Mini Camera Module, works with Pi 5 - RPi Zero Camera The Waveshare Raspberry Zero Mini Camera brings crisp 5 MP imaging to your compact Pi builds. This petite module plugs into the CSI port on Raspberry Pi Zero or Pi 5 and handles 1080p30 video as well as stills up to 2592 × 1944 pixels. Features Raspberry Pi Camera supports only Raspberry Pi Zero and Pi 5 families 5 megapixel OV5647 sensor Camera specifications CCD size: 1/4inch Focal Length: 3.51mm Angle of View (diagonal): 69.1 degrees Sensor best resolution: 1080p 2592 × 1944 still picture resolution Support 1080p30, 720p60 and 640x480p60/90 video record Dimension: 60mm × 11.5mm × 5mm Connection to Raspberry Pi 5 Place the metal surface of the FPC cable towards the wired network port, then connect to the CSI port. The Pi 5 has two CSI ports; either port can be used for connection. Connection to Raspberry Pi Zero Series Place the metal surface of the cable downward, then connect it to the CSI port. Development Resources Wiki : www.waveshare.com/wiki/RPi_Zero_V1.3_Camera
