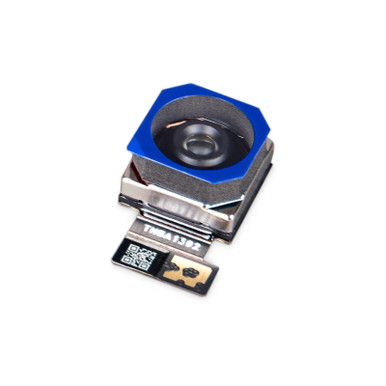

Raspberry Pi Camera 3 Sensor Assembly SA31NA30P, Std 76°, NoIR

Raspberry Pi Camera 3 Sensor Assembly SA31NA30P, Std 76°, NoIR - SC0894 The Raspberry Pi Camera Module 3 Sensor Assembly contains the same sensor and autofocus functionalities as Raspberry Pi Camera Module 3 AF (autofocus), enabling you to integrate the features of Camera Module 3 into a more diverse range of form factors. This assembly provides a low-cost way to add imaging capability to smaller devices, reducing manufacturing complexity and time to market. Specifications Sony IMX708 sensor  Resolution: 11.9 megapixels  Sensor size: 7.4mm sensor diagonal  Pixel size: 1.4μm × 1.4μm  Horizontal/vertical: 4608 × 2592 pixels  Integrated IR cut filter in standard variants; not present in NoIR variants  Phase Detection Autofocus  Operating temperature: 0°C to 50°C  On-board EEPROM for storing camera data Resources Raspberry Pi Camera Module 3 Sensor Assembly product brief Raspberry Pi Camera Module 3 reference schematic Obsolescence Statement  Raspberry Pi Camera Module 3 Sensor Assembly will remain in production until at least January 2030.
