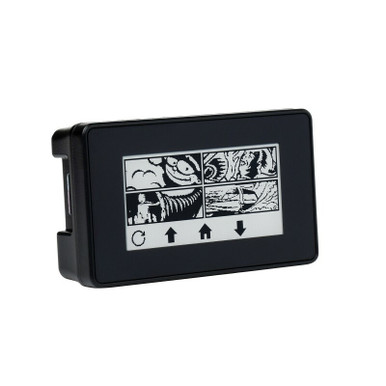

2.13inch Touch E-Paper E-Ink Display for Raspberry Pi Zero, 250×122, ABS Case
$26.96
$33.69
Waveshare 20716 - 2.13inch Touch E-Paper E-Ink Display For Raspberry Pi Zero, 250×122 Pixels, with ABS Protection Case - 2.13inch Touch e-Paper HAT (with case) Features 2.13" capacitive touch e-Paper display, 5-point touch, 250×122 pixels Supports waken up by user-defined gesture No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi Zero / Zero W / Zero 2 W / Zero 2 WH Comes with development resources and manual (examples for Raspberry Pi) Highly aligned connectors, rounded corner design, slant sides for easily standing Heat dissipation holes on the back - combined with thermal tape, effective heat dissipation Specifications OPERATING VOLTAGE 3.3V GREY SCALE 2 INTERFACE 3-wire SPI, 4-wire SPI PARTIAL REFRESH TIME 0.3s OUTLINE DIMENSIONS 69.15 x38.90mm FULL REFRESH TIME 2s DISPLAY SIZE 48.55 x23.70mm REFRESH POWER 26.4mW(typ.) DOT PITCH 0.194 x0.194mm STANDBY CURRENT <0.01uA (almost none) RESOLUTION 250×122 pixels VIEWING ANGLE >170° DISPLAY COLOR black, white TOUCH POINT 5 (max) Advantages Of EINK E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect. Pinout Definition Outline Dimensions How To Install Includes 2.13inch Touch e-Paper HAT x1 ABS case x1 Screwdriver x1 Thermal tape x1 Rubber feet 4PCS x1 Screws x2 Resources WIKI: 2.13inch_Touch_e-Paper_HAT * Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
