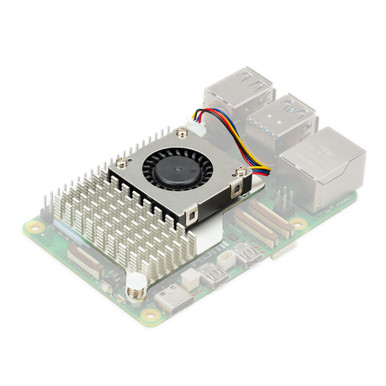

Raspberry Pi Active Cooler - SC1148The Raspberry Pi Active Cooler for Raspberry Pi 5 is a dedicated clip-on cooling solution for Raspberry Pi 5. It combines an aluminium heatsink with a temperature-controlled blower fan to keep your Raspberry Pi 5 at a comfortable operating temperature, even under heavy loads. Features Single-piece anodised aluminium heatsink Heatsink-mounted, temperature-controlled blower fan attached by three screws Spring-loaded push pins for mounting onto Raspberry Pi 5 Pre-applied thermal pads for heat transfer Specifications Input voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5 Fan speed control: Pulse width modulation control with tachometer Maximum airflow: 1.09 CFM Maximum fan speed: 8000 RPM /- 15% Product material: Anodised aluminium Resources Raspberry Pi Active Cooler product brief Raspberry Pi Active Cooler mechanical drawing
