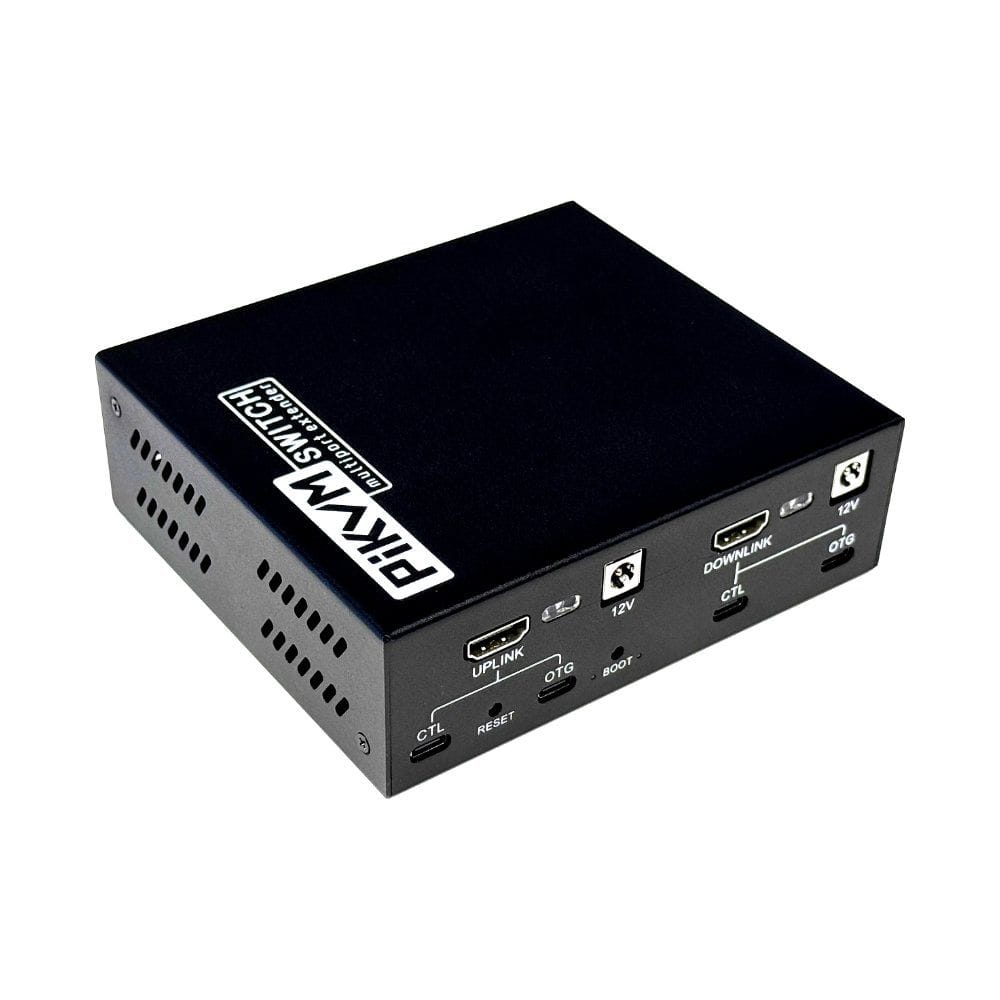

PiKVM Switch Multiport Extender - Unlock Multi-System Access The PiKVM Switch enables one PiKVM device to view and control multiple computer targets connected to each port from a web UI. Up to five Switch Multiport Extenders can be daisy-chained to provide 20 ports, allowing a single PiKVM to control and manage one of 20 connected targets. Compared to classic data center KVM switches, it offers similar control at a lower cost and with simpler maintenance. Each video input includes a dedicated EDID for accurate HDMI display emulation, along with full control over the connection state of every port. With PiKVM’s modular design and the Switch, you can expand your setup step by step, adding units as needed without ever replacing the whole KVM. Compatibility PiKVM V4 Plus PiKVM V3 PiKVM V2, V1 DIY models ⚠️ PiKVM V4 Mini is not compatible with the PiKVM Switch (no available USB host ports). The Switch Multiport Extender must be controlled through the PiKVM interface, since the unit has no built-in controls. Features Cost-effective scalability – One Switch can manage up to 5 chained switches (20 ports), cutting costs and maintenance. 4 targets per unit – Each extender adds four controllable systems. Seamless integration & updates – Managed directly with PiKVM OS, with automatic firmware sync across all chained switches for stable, unified control. Operational insights with multifunctional status LEDs – Monitor detected targets, selected ports, and the switch's overall status in real time. Rapid switching – With an advanced HDMI dummy plug function, you can switch between target computers significantly faster than competing solutions! Video inputs feature dedicated EDID configuration and complete control over the connection state of each port. Ready to use – Includes a power supply, ATX adapters for power and AUX control, brackets, and all the cables needed to get started! Specifications Power:- Power Input: 12V, 0.5A DC, 5.5x2.1mm (Power supply is included) - Peak power consumption: Up to 6W (0.5A/12V) - Built-in watchdog circuitry Connectivity/Interfaces:- 4x HDMI input ports: Video source from the target computer - 4x USB-C 2.0 “OTG”: Keyboard and mouse emulation for the target computer - 4x ATX RJ-45: Special port for target power control or AUX - HDMI uplink/downlink: HDMI signal to PiKVM unit or to daisy-chain multiple units - USB-C female “CTL”: Switch management from PiKVM - USB-C female “OTG”: External device emulation/mass storage from PiKVM Video/Audio:- Supported resolutions: up to 1920x1200@60Hz - Audio capture mode: HDMI audio capture support Environmental:- Operating temperature range: 0°C to 50°C - Storage temperature range: -20°C to 60°C Dimensions:121 x 137 x 44mm Weight: 0.6 kg Connectivity 1. HDMI in 2. Status LED 3. Port number 4. USB 2.0 OTG 5. RJ-45 ATX 6. HDMI out to PiKVM 7. Status LED (Uplink) 8. 12V input 9. HDMI in 10. Status LED (Downlink) 11. Power out 12. USB Control to PiKVM 13. Reset 14. USB OTG to PiKVM 15. Activity LED 16. Boot 17. Power LED 18. USB Control 19. USB OTG Contents 12V 2A AC Power Supply, International Plugs, DC 5.5x21mm DC Barrel Jack Cable, 5.5x2.1mm 90Deg Male, Black, 30cm 2x USB3.0 Cable, USB-C Male, Black, 30cm USB-A Male To USB-C Female Adapter HDMI 2.0 Cable, Black, 30cm 4x ATX Board & Wire Set 4x ATX Bracket Set Resources NEW Support Forum Datasheet PiKVM Handbook: Switch Multiport Extender device guide
