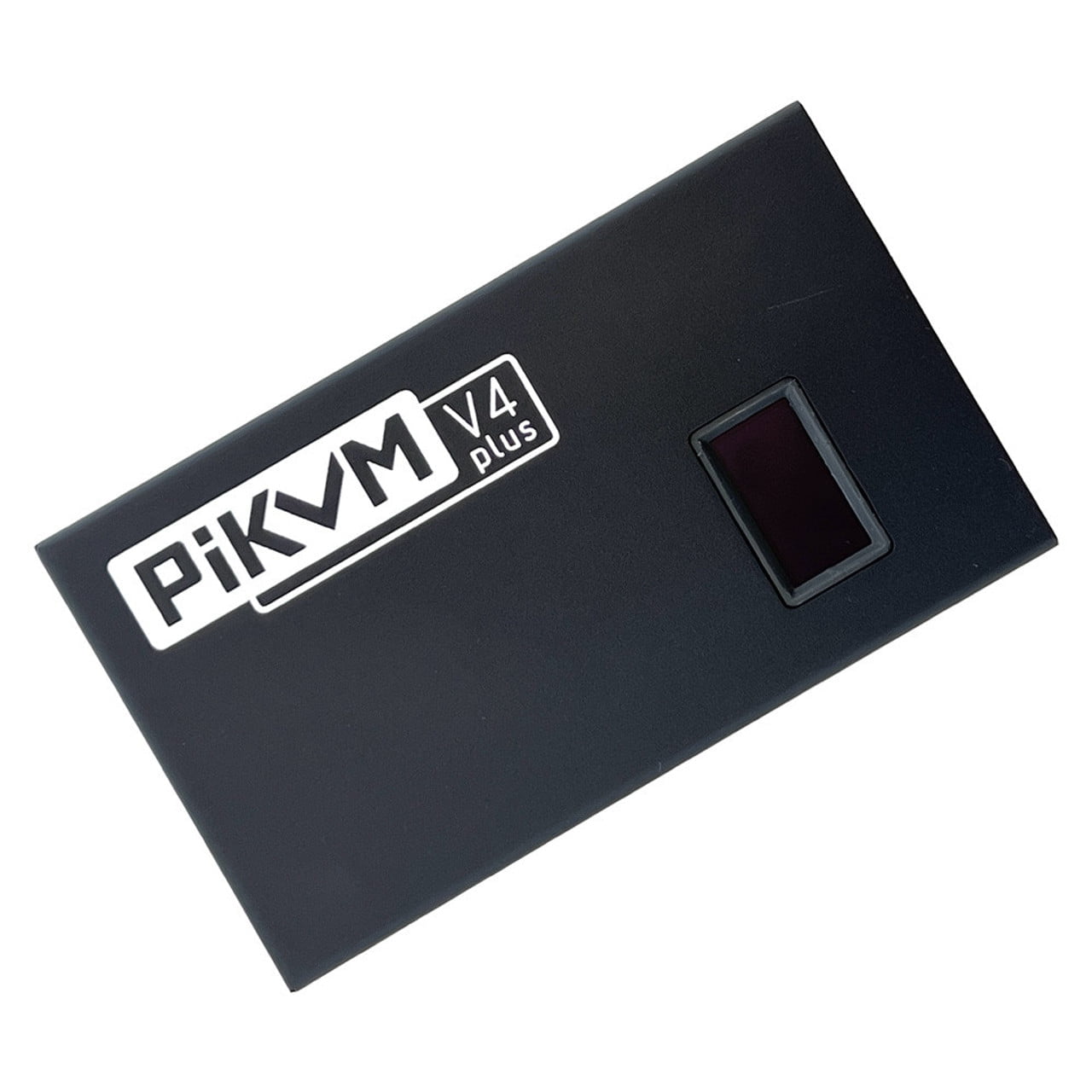

PiKVM V4 Plus - The Ultimate Open-source, Raspberry Pi-based KVM Over IP for Seamless Remote Access The PiKVM V4 Plus is a fully assembled, Raspberry Pi CM4-powered KVM-over-IP device that gives you secure, BIOS-level remote access to servers, PCs, and media systems from anywhere. Featuring 1080p60 video capture, true USB keyboard/mouse emulation, onboard storage, and ATX power control, this plug-and-play unit is perfect for IT admins, homelab enthusiasts, and remote troubleshooting. ❓ Unsure which PiKVM model to choose? See our comparison chart. ✨ NEW! Pair your PiKVM V4 Plus with the PiKVM Switch, which gives a single user access to multiple computers. Features Ultimate Turnkey Kit – Ready to go out of the box with included power supply, Ethernet & USB cables, and PCI mounting brackets. USB Functionality & KVM Switching – Exclusive to the V4 Plus model, enabling advanced USB-based interactions and device control. Industrial-Grade Hardware – Powered by the Raspberry Pi Compute Module 4 (CM4), CE certified for professional environments. High-Resolution Video Support – Enjoy video with native support for 1920x1080@60Hz and 1920x1200@60Hz. Ideal for UEFI/BIOS-level access. Triple Connectivity Options – Connect via Gigabit Ethernet, built-in WiFi (with optional external antenna), or Cellular. USB 3.0 Storage Support – An Internal USB 3.0 port is available for a flash drive. Sleek & Silent Design – Durable steel enclosure with customized silent cooling system for minimal noise and maximum reliability Enhanced Security – Includes MicroSD locker, Kensington security slot, and dual locator LEDs for physical protection and system identification. Important Note: USB functionality such as KVM switching is only supported on the PiKVM V4 Plus. Why Choose PiKVM V4 Plus? If you need a professional-grade KVM over IP that’s open-source, flexible, and scalable, this is it. The PiKVM V4 Plus is built for mission-critical tasks, from BIOS-level management to remote troubleshooting. It integrates effortlessly into complex infrastructure environments. Perfect For: IT administrators and sysadmins Remote server and infrastructure maintenance Home lab enthusiasts Developers and embedded system testers MSPs and support technicians Specifications Raspberry Pi Compute Module 4 CM4102000 with 2GB of RAM, WiFi, and Bluetooth Connection type USB-C Power type DC 12V, 2A Power failure option Internal supercapacitor for the real-time clock support HDMI female HDMI source input USB-C female For the keyboard, mouse, mass storage, and other external device emulation) USB-C female Serial console management port Micro SD card slot For the OS storage ATX RJ-45 Special port for power control or AUX WiFi Optional WiFi b/g/n support with internal/external antenna LED indicators power, activity, console power, search led, HDMI source engaged OLED display OLED 128x32 0.91” white Supported resolutions up to 1920x1200@60Hz Video compression methods MJPEG, H.264 Audio capture mode HDMI audio capture support Peak power consumption Up to 24W (2A/12V) Operating temperature 0°C to 50°C Storage temperature -20°C to 60°C Size 120 x 68 x 44mm Weight 0.35 kg Connectivity Diagram Activity LED (Red) Power LED (Green) Power Input 5.1V 3A Power Input 12V 2A Micro SD card slot USB 3.0 port 1 RJ45 Serial console port RJ45 1Gb Ethernet port Serial console active LED / Beacon LED (Green) USB 2.0 Serial console port Beacon LED USB 2.0 OTG connector RJ45 ATX control port USB 3.0 port 2 HDMI video output port 1 HDMI video output port 2 Optional antenna’s mounting holes Video source ready status LED HDMI video input port Video capture ready status LED Ventilation holes Service switches Kensington Security Slot Display Content PiKVM V4 Plus device Micro SD card with pre-imaged PiKVM software ATX control board ATX connection cables ATX installation brackets 1 x Ethernet cable 1 x ATX cable 1 x USB C to USB A cable 12V 2A Power Supply (international adapters) Resources NEW! Support Forum PiKVM Website PiKVM on GitHub Kickstarter Campaign CE/UKCA compliance
