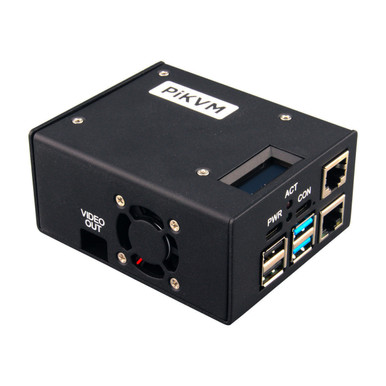

PiKVM V3 Pre-Assembled – Ready-to-Use Remote Management Solution After the success of the PiKVM HAT, this pre-assembled V3 offered a plug-and-play remote management solution. While newer Pi-KVM models are now available, the V3 remains a cost-effective solution. Looking for the latest PiKVM? Check the PiKVM V4 Plus and PiKVM V4 Mini, both with faster HDMI capture, audio support, and improved design compared to the V3. Features Control a computer/device using a web browser! Low bandwidth usage - 6Mbps for Full-HD approximately Full HD 1920 x 1080p 50Hz max resolution HDMI capture device with future audio support Mass storage emulation - Simulate a virtual flash drive or CD drive using an image file uploaded to PiKVM! Ability to initiate the removal and insertion of USB devices ATX controller - Switch the machine on or off, reset it, and monitor power & storage LED activity remotely Automatic variable-speed 5V PWM fan for silent operation USB & RJ-45 (Cisco-like) serial console for configuration and debugging OLED display with name, IP address, temperature, CPU load, and uptime Software: Linux-based, regularly updated by a dedicated team ℹ️ Important: USB-C display input is not supported. Technical specifications Includes a Raspberry Pi 4 with 2GB RAM Video/Resolution: 1920x1080p at 50Hz or lower Power: USB-C 5.1V, 3A power supply required (not included) Real-time clock with rechargeable Super Capacitor Enclosure: robust 1.6mm (1/16") steel case Product dimensions: 92mm x 75mm x 45mm (4"x3"x2") Product weight: 410 g (14.5 oz.) Warranty: 1 year limited Unsure which PiKVM model to choose? See our comparison chart Connectors Front: Back: Side: Power: USB-C ATX Control Video Out: micro HDMI Serial Console: USB-C RJ45(one active at a time) OTG Host USB (USB-C) 2x USB 2.0, 2x USB 3.0 HDMI Video input & output Gigabit Ethernet What's in the Box PiKVM v3.3 Pre-Assembled ATX adapter board with brackets and motherboard interface wiring A 32 GB MicroSD card pre-imaged with the PiKVM software Essential accessories 5.1v 3A power supply with USB-C, Raspberry Pi compatible A regular HDMI cable USB-C to USB-A cable with DATA lines (for keyboard and mouse emulation) Straight Ethernet cable (NOT crossover, to connect the PiKVM and ATX board) Resources NEW! Support Forum PiKVM Website PiKVM on GitHub CE/UKCA compliance
