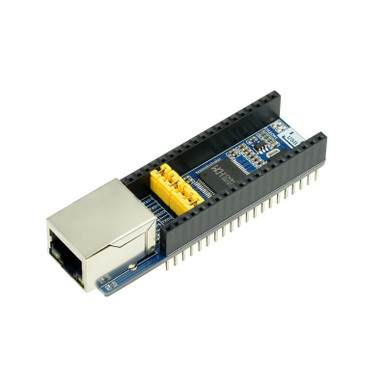

Ethernet to UART Converter for Raspberry Pi Pico, 10/100M Ethernet
$13.46
$26.37
Waveshare 20410 - Ethernet To UART Converter For Raspberry Pi Pico, 10/100M Ethernet, Enabling Network Communication Through UART Features Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series Onboard Ethernet to UART transparent transceiver, 2-CH UART, standalone transparent transmission for each channel Onboard jumpers for pin configurations Embedded Ethernet MAC and PHY layers Bi-direction transparent data transmission between UART and Ethernet 10/100M, full-duplex/half-duplex auto-negotiation Ethernet interface, 802.3-compliant Auto-MDI/MDIX, detect and switch cable type automatically Supports DHCP auto-obtained IP and DNS domain access Network parameter configuration like chip operating mode, port, IP, via host computer software or UART command Four operating modes: TCP CLIENT, TCP SERVER, UDP CLIENT, UDP SERVER Full-duplex or half-duplex UART communication, supports RS485 RX/TX auto switch (external RS485 controller required) Supports virtual serial port software (provided) KEEPALIVE mechanism support Comes with development resources and manual (examples for Pico/Raspberry Pi/Arduino/STM32) Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico Breakout Key Pins, For Use With Other Host Boards Specifications OPERATING VOLTAGE 3.3V/5V OPERATING MODE TCP/UDP UART TTL 3.3V / 5V compatible OPERATING TEMPERATURE -40℃ ~ 85℃ OPERATING CURRENT 140mA BAUDRATE 300bps ~ 921.6Kbps DIMENSIONS 74.54 × 21.00(mm) STORAGE CONDITION -55℃ ~ 125℃ Pinout Definition Outline Dimensions Resources Wiki
