Uninterruptible Power Supply Module, Supports charging And Power output at the same time, 3S & 5V 5A Output

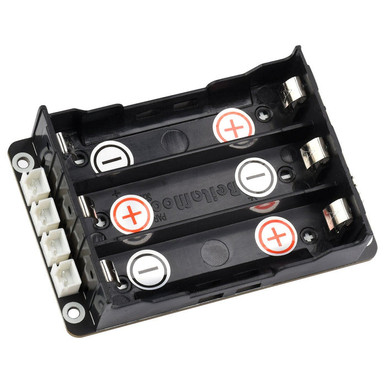

Waveshare 23884 - Uninterruptible Power Supply (UPS) Module, Supports Charging And Power Output At The Same Time, 3S & 5V 5A Output - UPS Module 3S (EN) This Uninterruptable Power Supply (UPS) module takes three 18650 lithium-ion batteries (not included) and offers a regulated 5V supply with up to 5A continuous output alongside a 3.3V output and a host of other useful features - perfect for the Raspberry Pi. The module supports simultaneous charging/discharging and can provide both a 5V and 3.3V stable voltage output. It also supports I2C output, allowing you to monitor and display the IP address, battery voltage, current, power, and other parameters via a terminal window. Onboard protection is in place too - overcharge/discharge, over-current, short circuit, and reverse polarity protection, along with an equalising charge feature. There are also battery warning LED indicators, letting you know if the batteries aren't connected correctly. In the box, you'll find the UPS module, UK 12.6V 2A power supply, and acrylic enclosure panels & fixings, as well as four XH2.54 squid cables: USB-C male, locking switch button, DC female (for power supply input), and XH2.54 Male. Note: This product includes a US power supply and does not include the required 18650 batteries. Assembly required (acrylic enclosure). Raspberry Pi is not included. Features Universal UPS Module 5V 5A & 3.3V 300mA output Multiple interface options via included squid cables I2C bus communication, monitor battery voltage, current, and power in real-time Multi-function expansion pin header Multiple protection circuits: overcharge/discharge, over-current, short circuit, reverse-polarity, and charge equalisation Battery warning indicators Online development resources and manual What's Onboard? Chips S-8254AALi battery protection SY82865V voltage regulator HY2213Equalizing charge INA219Voltage/current monitoring RT91933.3V voltage regulator NDC7002NVoltage translator Others AO4407ABattery protection MOS tube Power port12.6 2A power input Power output switch Batteries series power output 5V power output Reverse warning indicators Multi-functional expansion header I2C level selection3.3V (default) / 5V Specifications Output voltage: 5V 5A 3.3V 300mA Control interface: I2C Battery support: 3 x 18650 Lithium-ion batteries (in series, NOT included) Charger: 12.6V 2A  Dimensions: 60mm x 93mm Mounting hole diameter: 3mm Package Contents 1x UPS Module 3S 1x 12.6V 2A Battery Charger (US Plug) 1x XH2.54 male self-lock button switch ~15cm 1x XH2.54 male to DC5521 female cable ~15cm 1x XH2.54 dual connector cable ~15cm 1x XH2.54 male to Type-C cable ~20cm 1x Acrylic protection panels 1x Screw pack 18650 Batteries not included. Raspberry Pi not included. Resources Product Wiki Demo Code (ZIP) Dimensions (DXF) 3D Model (STEP)
