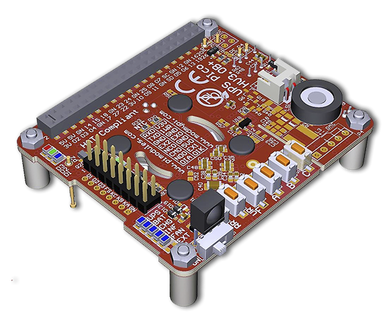

UPS PIco HV3.0B HAT Top-End 450 (PM_072) The UPS PIco HV3.0B is a HAT-compliant uninterruptible power supply and mobile power bank for Raspberry Pi 3 Model B . It provides safe shutdown, automatic reboot after power restore, and an external slide power switch that prevents file corruption. Battery output supports up to 5V 3A. Key features HAT dimensions with EEPROM; plug-and-play install Safe shutdown / startup button and slide ON/OFF switch 5V battery output up to 3A peak; 5V 750mA auxiliary output Integrated RTC, fan control with temperature sensor 3 user buttons, 3 user LEDs, PWM sounder 3× 12-bit ADC channels (0–5V, 0–10V, 0–20V, 0–30V ranges) Optional bi-stable (latching) relay and RS232 System monitoring: currents, voltages, battery level, temperature Fits most cases; powered/charged via GPIO (no extra cabling) Battery & runtime Includes a 450mAh (15C) LiPo for safe shutdown. Optional packs up to 8000mAh (and 18650 holders) enable extended runtimes — up to ~16 hours depending on load. What’s in the box UPS PIco HV3.0B HAT Top-End 450 PCB LiPo 450mAh (15C) Unfitted headers, reset pins, sounder, and slide switch Mounting hardware for Raspberry Pi Resources 3D PDF Technical Specifications Firmware & Manual — Manual (PDF) Essential extras Infrared Receiver High-capacity batteries: 1500 / 4000 / 8000mAh Bi-stable (Zero Power) latching relay terminal block PIco LP/LF 18650 battery holders (single / double) UPS PIco HV3.0A Terminal Blocks PCB PIco Fan Kit 3.0
