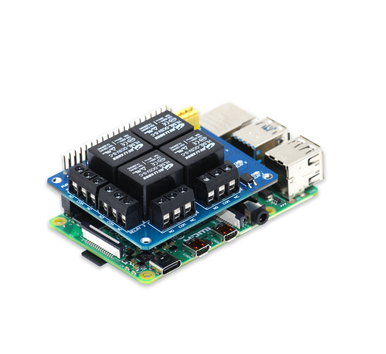

PiRelay V2 is developed by SB Components with the potential to control 4 appliances and loads up to 250V AC/ 7 A, 30V DC/ 10A to provide a way to control the high voltage/current devices. It helps the user to enhance the intelligence of the appliances. It comprises an “Optocoupler” that allows the circuit to transmit an electrical signal between two isolated circuits through light energy. Optocoupler helps the user to prevent the high voltages in one part of the circuit from affecting the other part of the circuit which provides safety to the system. It provides a better connection of PiRelay V2 with the Raspberry Pi that gets enabled from the standardized shield form factor. One can enable the IoT technology of their home appliances using PiRelay V2 that will make their life efficient. Features 4 - High-quality Relay and loads up to 250VAC/7A, 30VDC/10A Optocoupler Standardized shield shape and design LED working status indicators for each Relay 40-Pin Stacking Header for accessing GPIO of RPi Control through PiRelay App Compatible with Raspberry Pi 4, 3B , 3, 2, Zero Specifications Channel 4 Voltage 5V AC Control Voltage 7A / 250V DC Control Voltage 10A / 30V Dimensions 6.5cm x 5.5cm (Approx.) Weight 100gm (Approx.) Applications Home Automation Industrial Automation Smart Appliances Automated Gradening Security System Hardware Pinout Definition Relays Bards BCM Relay 1 35 GPIO 19 Relay 2 33 GPIO 13 Relay 3 31 GPIO 6 Relay 4 29 GPIO 5 Resources User Manual , Example Codes, Circuit Diagram Wiki
