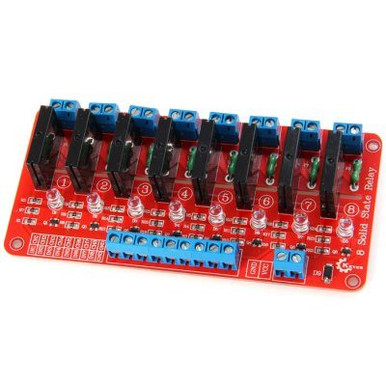

This 8-Channel Solid State Relay Module is compatible with many micro-controller boards such as Arduino and Raspberry Pi. Specifications 5V Omron solid state relays 240V / 2A, output with resistive fuse 240V / 2A Input Power: 5VDC (160MA) Control signal input voltage: (0-2.5V low state relay OFF ) (3-5V state high relay ON ) Voltage:5V Quiescent current: 0 mA Operating current: 1 WAY:13.8mA .. 2 WAY: 26.8mA . 3 WAY: 37mA . 4 WAY: 48mA . 5 WAY: 59mA . 6 WAY: 70mA . 7 WAY: 81mA . 8 WAY: 90mA Trigger Voltage: 3.3-5V Trigger current: 2mA Product Weight: 0.082 kg Product Size(L x W x H): 12.50 x 5.90 x 2.00 cm / 4.91 x 2.32 x 0.79 inches Channels DC : positive power supply (according to the relay voltage supply) DC-: negative power supply CH1-8: relay module signal triggering end (High trigger effective) Resources Ks0266 keyestudio Eight-channel Solid State Relay Module Wiki
