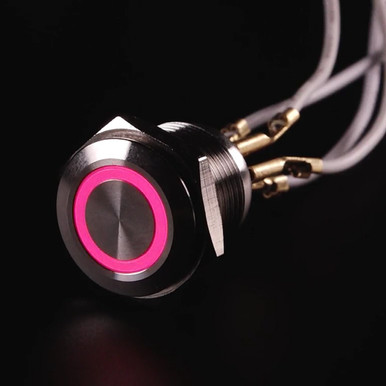

A full color RGB LED ring light! These chrome-plated metal buttons are rugged, but certainly not lacking in flair. Simply drill a 16mm hole into any material up to 1/4" thick and you can fit these in place - there's even a rubber gasket to keep water out of the enclosure. On the front of the button is a flat metal actuator, surrounded by a plastic RGB LED ring. On the back there are two gold contacts for the button and 4 for the RGB LED ring (one anode and 3 cathodes for each red, green, and blue). Power the anode at 3-6V and light up the red, green, and blue LEDs by pulling their designated contacts to ground as you desire - there's a built in resistor! If you want to use this with a higher voltage, say 12V or 24V, simply add a 1K ohm resistor in series with the LED cathodes to keep the LED current at around 20mA. You can PWM the RGB pins to make any color you like. This button is a momentary push button, when you press it the 'normally-open' contact shorts to the common contact. When you release it, the contacts open up again. The switch and LED are electrically separated, so to change the color, use a microcontroller to both read the contact pins and toggle the color control pins. Technical Details Drill hole diameter: 16mm Switch current: not rated, we recommend no more than 1A / 24VDC Switch contacts: 1 set normally open Material: Chrome plated brass Contact resistance: < 50 mOhm Insulation resistance: > 1000 Mohm Temperature: -20 C to 55 C Mechanical life: > 500,000 Electrical life: > 50,000 Panel thickness: 1-7mm Operating pressure: 1.5 - 2.5 N Operating stroke: 2mm Lamp rated voltage: 6V Product Dimensions: 22.0mm x 22.0mm x 19.5mm / 0.9" x 0.9" x 0.8" Product Weight: 11.6g / 0.4oz Datasheet
