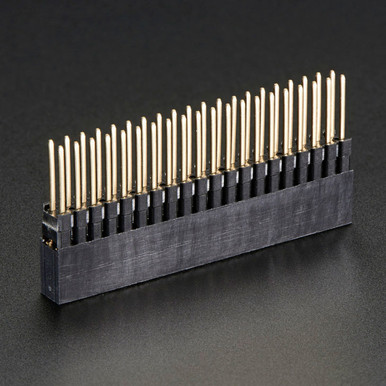

Stacking Header for Pi A /B /Pi 2/Pi 3 - 2x20 Extra Tall
$23.34
$42.95
Stack multiple plates, breakouts etc onto your Raspberry Pi Model B with this custom-made extra-tall and extra-long 2x20 female header. The female header part has extra spaces to make it 23.5 mm tall: when placed on your Pi, a PCB will clear the Ethernet and USB jacks. The stacky pin part is also extra-long, 10mm, so that when a standard 1.5mm thickness PCB is installed, there will be 8.5mm remaining, plenty to plug into. TECHNICAL DETAILS Pin Thickness: 0.6 mm Weight: 6.5g DIMENSIONS Overall Height: 23.5 mm Exposed Pin: 10 mm Body Height: 13.5 mm To check our all headers and their dimensions, please click here.
