4 & 40 Pin Extra Tall Header (Push Fit Version) - POE HAT Set

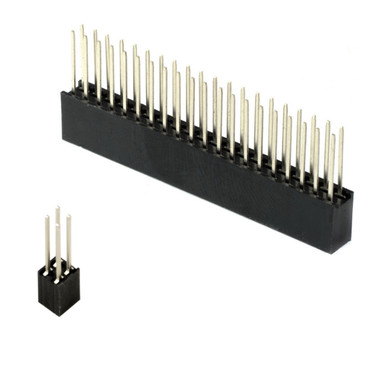

Stack on top of your official POE HAT with this custom-made extra-tall 2 x 2 pin female header and 2 x 20 pin female header. This is a set of two headers which allows you to stack a POE HAT and another HAT on top of your Raspberry Pi This is a push fit version of extra tall header designed to match with Raspberry Pi HAT Socket Headers or directly interface with the 4 pin socket on the POE HAT and the 40 pin GPIO header on the Raspberry Pi. The pins are extra tall (14.70mm from main body to end of pin), and extra fat (0.65mm x 0.70mm) to ensure a good solid fit with socket headers! These headers do not have a shroud, which makes the body of the header 8.50mm tall when placed on a Pi. FEATURES Set of Two Gold Plated 4 Pin Double Row (2x2) Socket Connector designed for use with the POE HAT Gold Plated 40 Pin Double Row (2x20) Socket Connector Extension for the Raspberry Pi POE Connectors Pitch 2.54mm Fully Tested with the official POE HAT DIMENSIONS Overall Height: 23.2 mm Exposed Pin: 14.7 mm Body Height: 8.5 mm To check our all headers and their dimensions, please click here.
