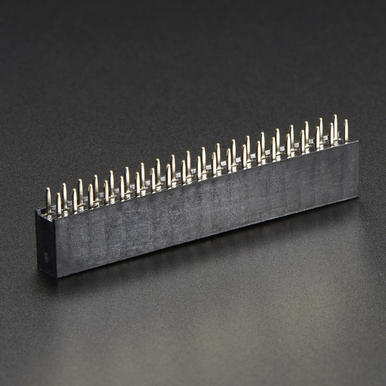

Connect your own PCB to a Raspberry Pi with this normal-height female header. The female header part is about 8.5mm tall, good for small HATs that do not to clear the USB/Ethernet jacks. This header has 3mm of pins, compared with Adafruit's stacking version which is the same base height but has 10mm header pins instead. With 3mm you don't have to cut the really long pins, so its ideal for basic Pi HAT design. DIMENSIONS Overall Height: 11.5 mm Exposed Pin: 3 mm Body Height: 8.5 mm To check our all headers and their dimensions, please click here.
