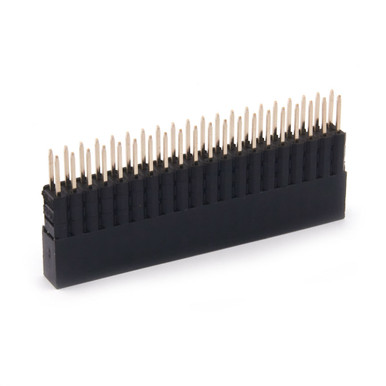

40 Pin GPIO Connector Header
$33.9
$45.77
Stack multiple plates, breakouts etc onto your Raspberry Pi Model B with this custom-made 2x20 female header. The female header part has extra spaces to make it tall: when placed on your Pi, a PCB will clear the Ethernet and USB jacks. The stacky pin part is also extra-long so that when a standard 1.5mm thickness PCB is installed, there will be some space remaining, plenty to plug into. FEATURES 40 Pin Double Row (2x20) Socket Connector Extension for the Raspberry Pi GPIO Connectors Fully Tested on the Raspberry Pi Model B DIMENSIONS Overall Height: 22 mm Exposed Pin: 6.5 mm Body Height: 15.5 mm To check our all headers and their dimensions, please click here.
