4G / 3G / 2G / GSM / GPRS / GNSS HAT for Raspberry Pi, LTE CAT4, the Global Version

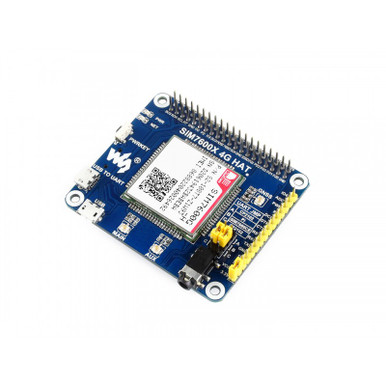

Waveshare 17372 - 4G/3G/2G/GSM/GPRS/GNSS HAT For Raspberry Pi, Based On SIM7600G-H - SIM7600G-H 4G HAT The SIM7600G-H 4G HAT is a 4G/3G/2G communication and GNSS positioning module, which supports LTE CAT4 up to 150Mbps for downlink data transfer. it is pretty low power consumption. You can connect this 4G module with computer to surf the Internet, or attach it onto Raspberry Pi to enable functions like 4G high speed connection, wireless communication, making telephone call, sending SMS, global positioning, etc. Features Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano Supports dial-up, telephone call, SMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc. Supports GPS, BeiDou, Glonass, LBS base station positioning Onboard USB interface, to test AT Commands, get GPS positioning data, and so on Onboard CP2102 USB to UART converter, for serial debugging Breakout UART control pins, to connect with host boards like Arduino/STM32 SIM card slot, supports 1.8V/3V SIM card TF card slot for storing data like files, messages, etc. Onboard audio jack and audio decoder for making telephone call 2x LED indicators, easy to monitor the working status Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper Baudrate: 300bps ~ 4Mbps (default: 115200bps) Autobauding baudrate: 9600bps ~ 115200bps Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set) Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32) Communications Specifications LTEWCDMA / TD-SCDMA / CDMA 2000EDGEGSM/GPRS Band SIM7600A-H: LTE-FDD B2/B4/B12 SIM7600A-H: UMTS/HSPA B2/B5 Not available SIM7600E-H: LTE-FDD B1/B3/B5/B7/B8/B20 LTE-TDD B38/B40/B41 SIM7600E-H: UMTS/HSPA B1/B5/B8 GSM/GPRS/EDGE 900/1800 MHz SIM7600CE-T:   LTE-TDD B38/B39/B40/B41 LTE-FDD B1/B3/B8 SIM7600CE-T: UMTS/HSDPA/HSPA B1/B8 TD-SCDMA B34/B39 CDMA 1X/EVDO BC0 SIM7600G-H: LTE-TDD B34/B38/B39/B40/B41 LTE-FDD B1/B2/B3/B4/B5/B7/B8 /B12/B13/B18/B19/B20/B25/B26/B28/B66 SIM7600G-H: UMTS/HSDPA/HSPA B1/B2/B4/B5/B6/B8/B19 SIM7600G-H: GSM/GPRS/EDGE 850/900/1800/1900MH Generation 4G 3G 2.5G 2G Emitting power 0.25W 0.5W@EGSM900 0.4W@DCS1800 2W@GSM900 1W@DCS1800 Data Speed LTE CAT 4 Uplink≤50 Mbps Downlink≤150 Mbps UMTS Uplink≤384Kbps Downlink≤384Kbps EDGE Uplink≤236.8kbps Downlink≤236.8kbps GPRS Uplink≤85.6kbps Downlink≤85.6kbps HSPA Uplink≤5.76Mbps Downlink≤42Mbps SIM Card Normal SIM (Not Included) GNSS Specifications Receiver type 16-channel C/A code Sensitivity Tracking: -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BD) Cold starts: -148 dBm Time-To-First-Fix (open air) Cold starts: <35s Hot starts: <1s Accuracy Position: <2.5m CEP SMS and Audio Specifications SMS Supported types: MT, MO, CB, Text, PDU Storage: USIM card and ME (default) Audio feature Supports echo cancellation Supports noise reduction Other Specifications Power supply: 5V Operating voltage: 5V/3.3V (configured via jumper) Operating temperature: -30°C ~ 80°C Storage temperature: -45°C ~ 90°C Dimension: 56.21mm x 65.15mm What's on Board SIM7600G-H CP2102 USB to UART converter NAU8810 audio decoder TXS0108EPWR voltage translator: translates 3.3V/5V into 1.8V MP2128DT power chip MP1482 power chip Raspberry Pi GPIO header: for connecting with Raspberry Pi SIM7600 control interface: for connecting with host boards like Arduino/STM32 SIM card slot: supports 1.8V/3V SIM card TF card slot: allows file/SMS/... storage 3.5mm earphone/mic jack USB interface: for testing AT Commands, getting GPS positioning data, etc. USB to UART interface: for serial debugging, or login to Raspberry Pi MAIN antenna connector AUX antenna connector GNSS antenna connector Power switch Network status indicator Power indicator Operating voltage selection jumper:VCCIO - 3.3V: set operating voltage as 3.3VVCCIO - 5V: set operating voltage as 5V UART selection jumper:A: access Raspberry Pi via USB to UARTB: control the SIM7600 by Raspberry PiC: control the SIM7600 via USB to UART Dimension Development Resources Wiki : www.waveshare.com/wiki/SIM7600G-H_4G_HAT
