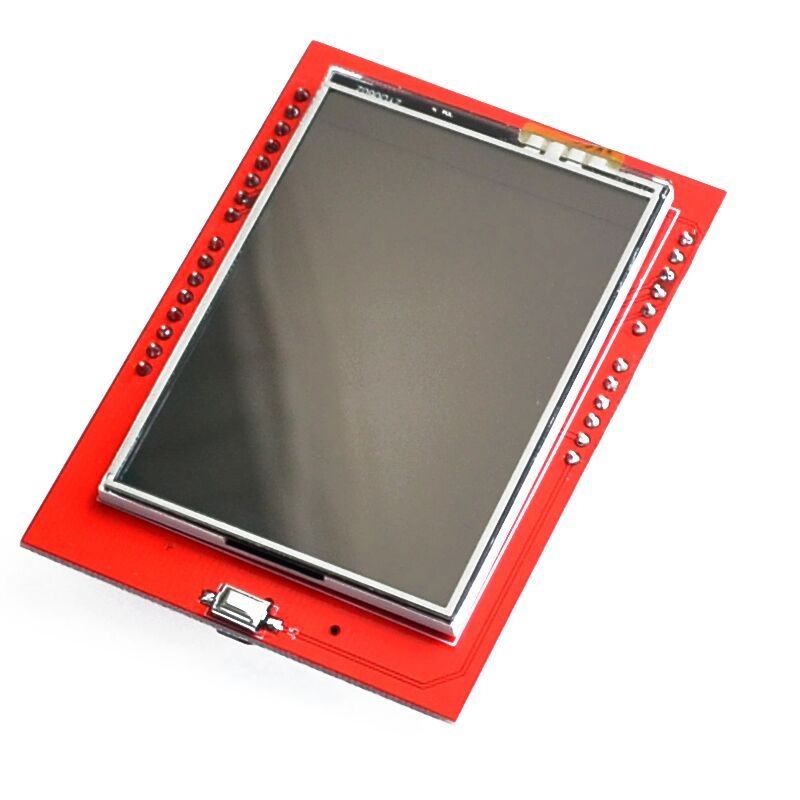

2.4 Inch Touch Screen TFT Display Shield for Arduino UNO Mega
$53.39
$82.75
2.4 Inch Touch Screen TFT Display Shield adds a touch up to your Arduino project with a beautiful large touchscreen display shield with built-in micro SD card connection. This TFT display is big (2.4 diagonal) bright and colorful! 240320 pixels with individual pixel control. It has way more resolution than a black and white 12864 display. Features: 2.4 diagonal Touch LCD TFT display 240320 resolution, 18-bit (262,000) color 8-bit digital interface, plus 4 control lines 5V compatible! Use with 3.3V or 5V logic Onboard 3.3V 300mA LDO regulator Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3, and analog 4 and 5. Pin 12 is available if not using the microSD Works with any Arduino Uno and mega compatible boards Package Includes: 1 x 2.4 Inch Touch Screen TFT Display Shield for Arduino UNO Mega 1 x Stylus Pen Additional information Resolution 240320 pixels supply voltage 5V Working temperature -30C ~ 70C Compatible boards Arduino UNO and Mega Length(mm) 72 Width(mm) 52 Height(mm) 12
