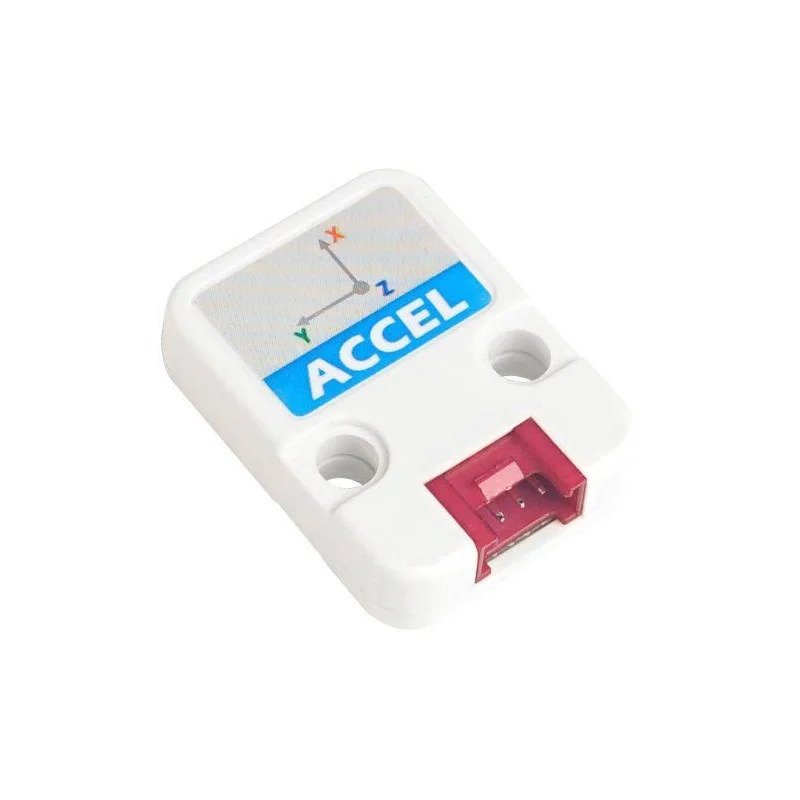

M5 Stack 3-Axis Digital Accelerometer Unit

ACCEL is a motion sensor Unit. Integrated with ADXL 345, ACC is able to obtain 3- axis of Acceleration. ADXL 345 is a small, thin, ultralow power, 3-axis accelerometer with high resolution (13-bit) measurement at up to ±16 g. Digital output data is formatted as a 16-bit two’s complement and is accessible through the I2C digital interface. In this Unit, we used the I2C series interface.SpecificationsInterfaceI2CMeasurement Range± 16gResolutionThe resolution of 10-bit fixed resolution increases with the increase of g range, up to 13 bits at ± 16 gCable Length (cm)20Operating Voltage (VDC)500%Operating Current23uAOperating Temperature (°C)-40 to 85Length (mm)32Width (mm)24Height (mm)8Weight (gm)4Shipment Weight0.005 kgFeatures:Ultralow powerSingle tap/double-tap detectionActivity/inactivity monitoringFree-fall detectionI2C digital interfacesWide temperature rangePackage Includes:1x 3-Axis Digital Accelerometer Unit1x GROVE Cable
